TS-324 Roofing Specifications and CAD Details
Explore TS-324® trapezoidal standing seam roofing resources for architects and specifiers. Use the tabs below to review architectural details, technical data and product information. The Guide Specs tab provides roofing specifications and CAD drawings to support your project documentation.
SST guide specifications on ARCAT | SST CAD drawings on ARCAT | TS-324 roof panel overview
TS 324® seaming methodology: one panel three seaming options.
RollLok® , TripleLok®, QuadLok®
Highest Performing Clips
Wind Uplift up to 360 psf without failure (maxed out capacity of test box)
Thermal Expansion Up to 7 Inches of Travel
Highest Standoff Clips Enable Increased Insulation and Retrofit Opportunities.
Industry Leading Envelope Performance
- ASTM 1680-16 (2022) Air Infiltration tested @ 40psf (compared to standard 6.25psf) = Superior performance @ 6X the pressure
- ASTM E 1646-95 (2018) Water Infiltration tested @ 50psf (compared to standard 12psf) =ZERO Leaks @ 4X the pressure
- ASTM E 2140-01 (2017) 6-inch Static Water Head test= ZERO Leak with Laps
Energy/Green Design Flexibility
- Extended Standoff Clips Provides Higher R and Lower U Values
- R-Seal: Provides R and U values comparable to IMP With Reduced Cost & Installation time
Pipe Penetration
Pipe Penetration
To flash roof penetrations, the most common material for a pipe boot is ethylene propylene diene monomer (EPDM) rubber.
Ridge
Ridge
Click on image to enlarge

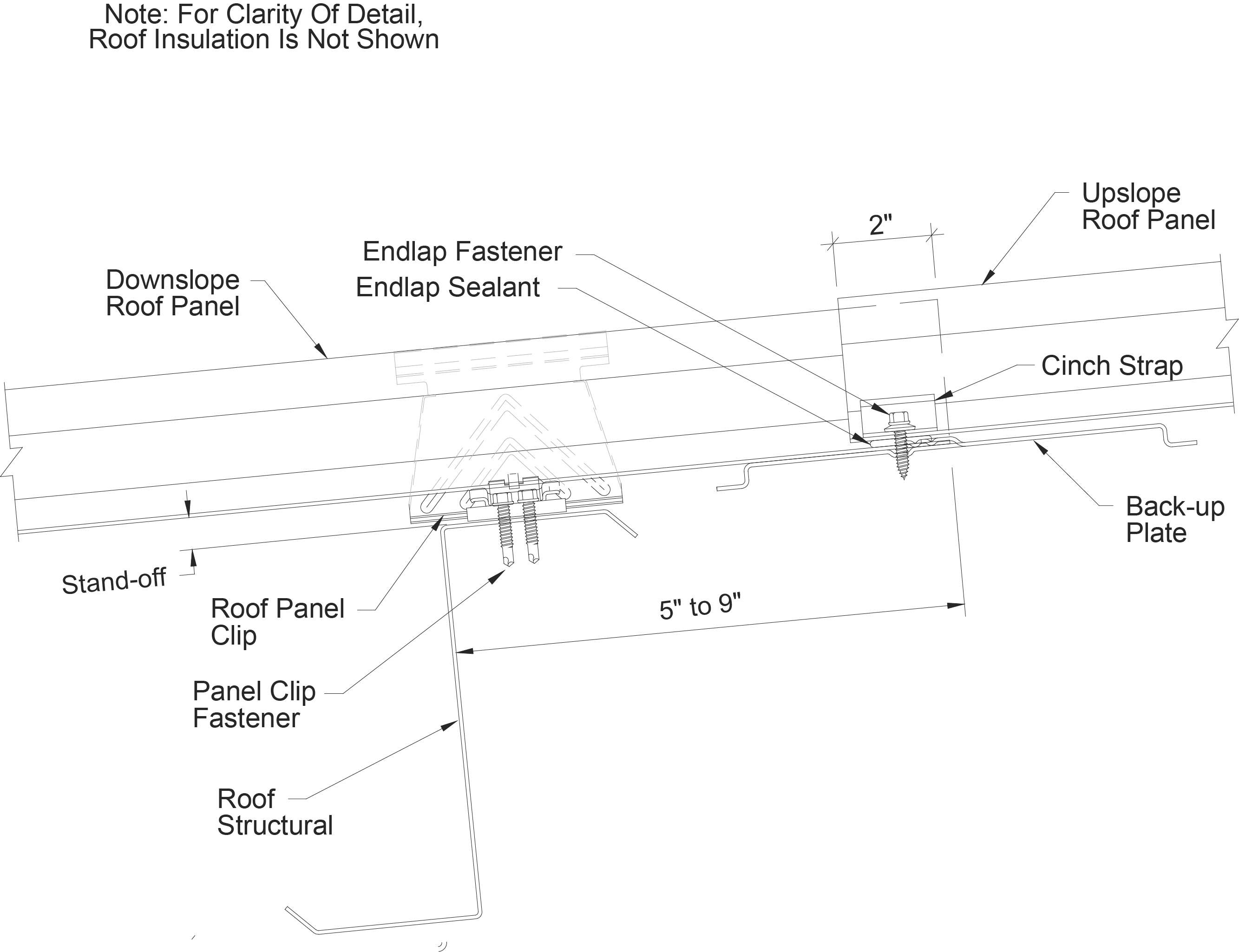

Panel Endlap
Panel Endlap
Click on image to enlarge

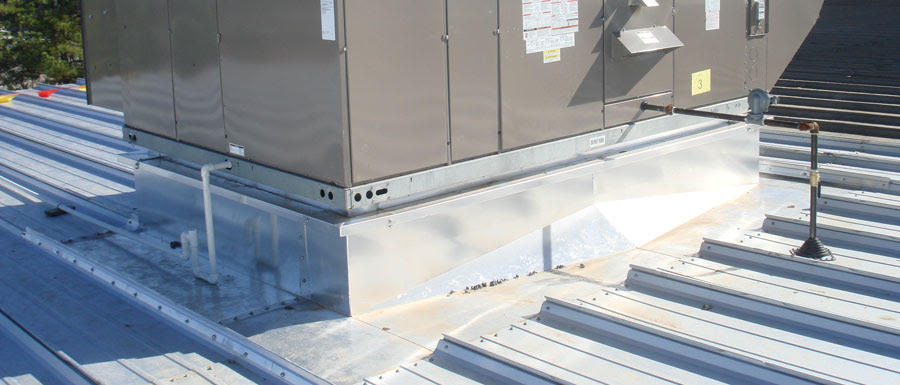

Roof Penetration with Curb
Roof Penetration with Curb

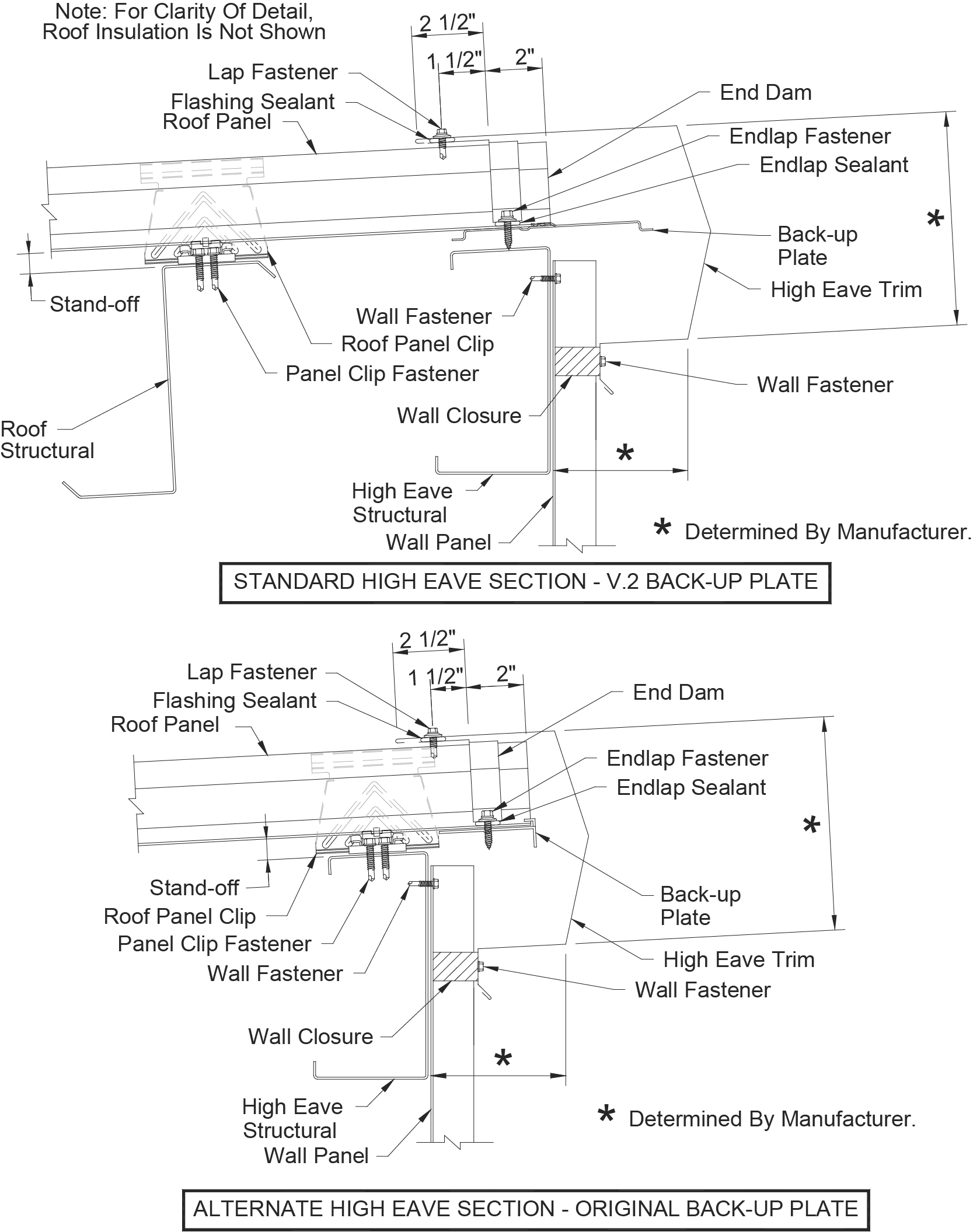

High Eave
High Eave
Click on image to enlarge
Panel Seam Technology
Panel Seam Technology
Click on image to enlarge
Low Eave
Low Eave
Click on images to enlarge

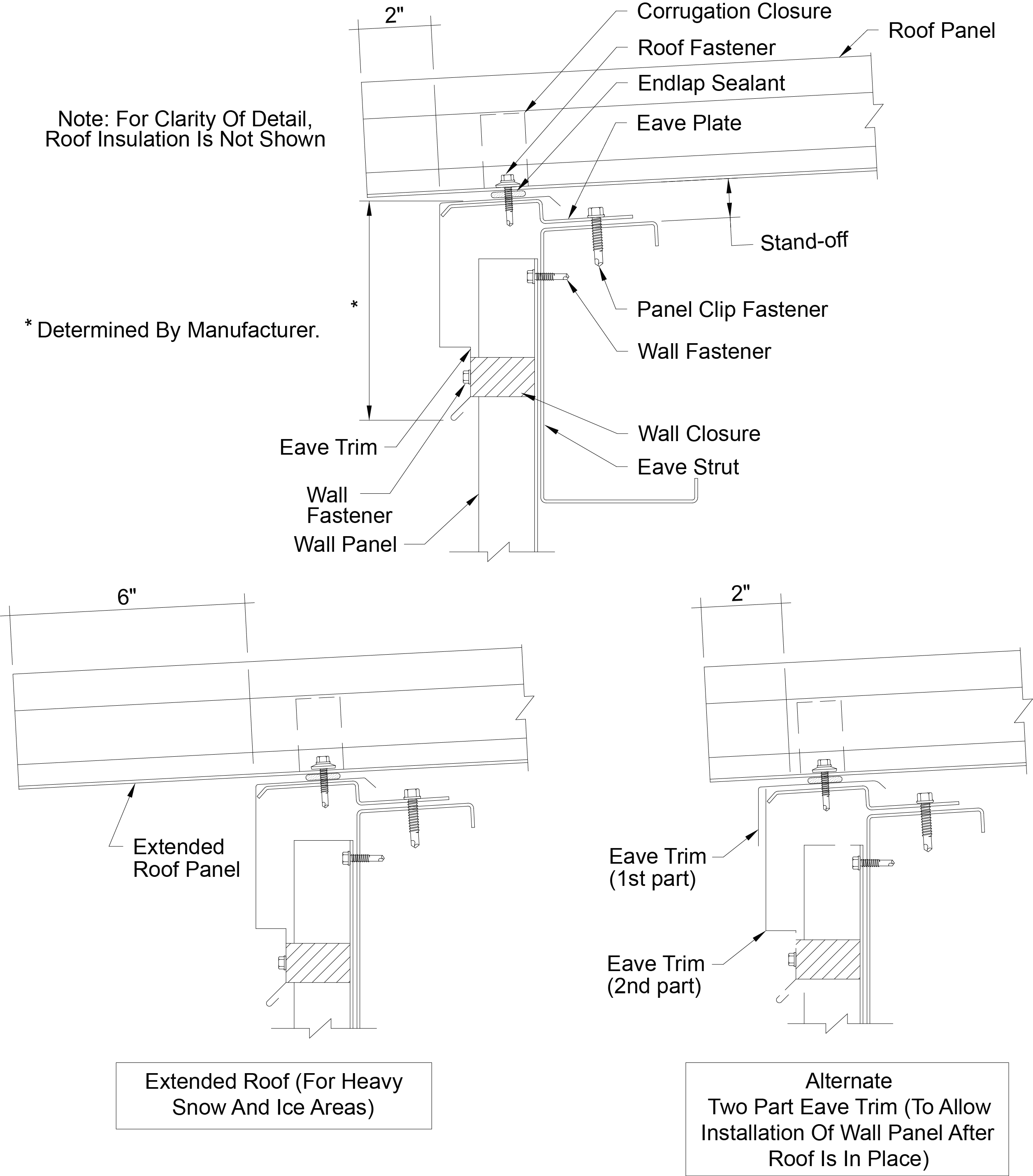

Eave Trim Only |

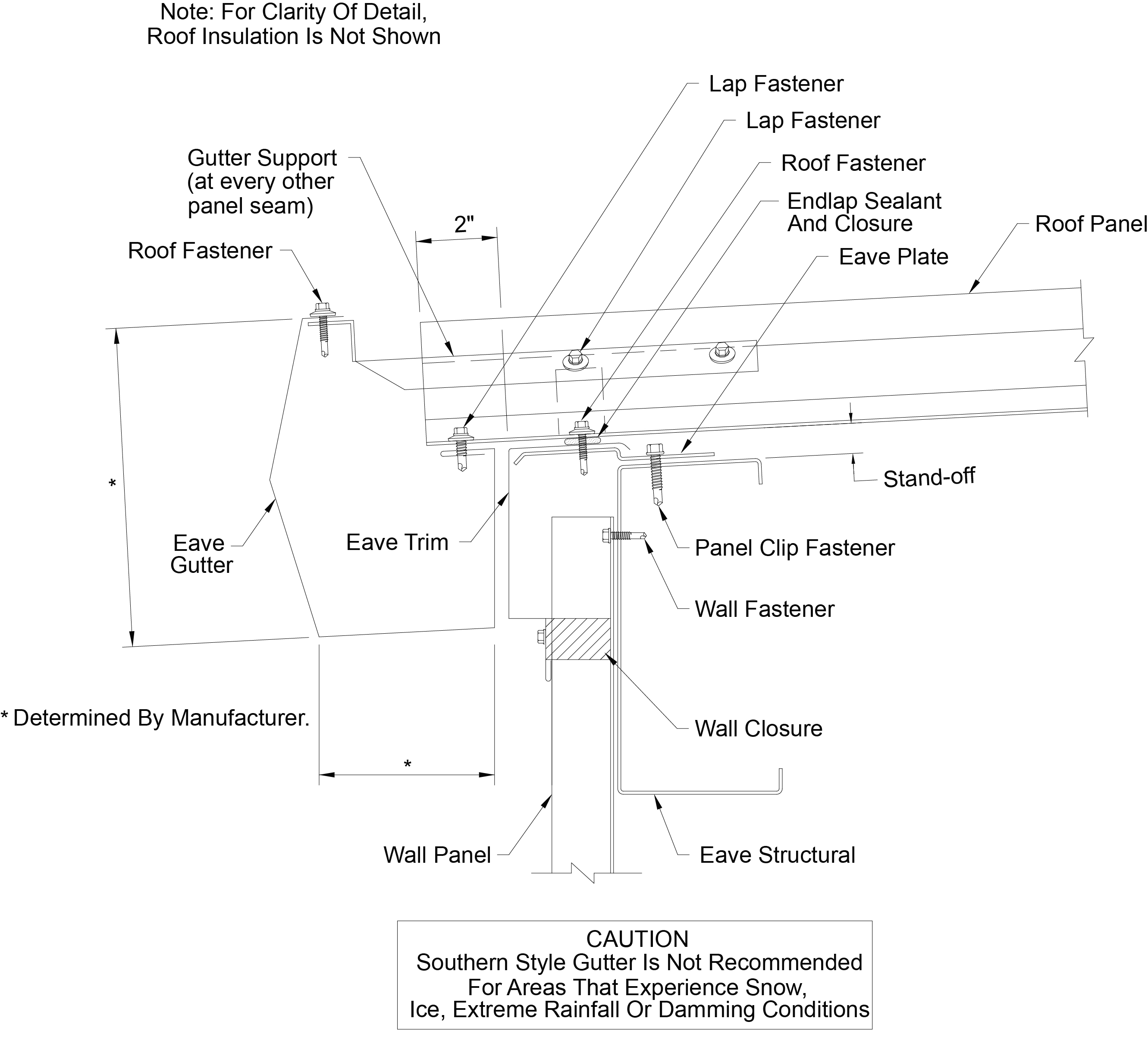

Southern Style Gutter
|

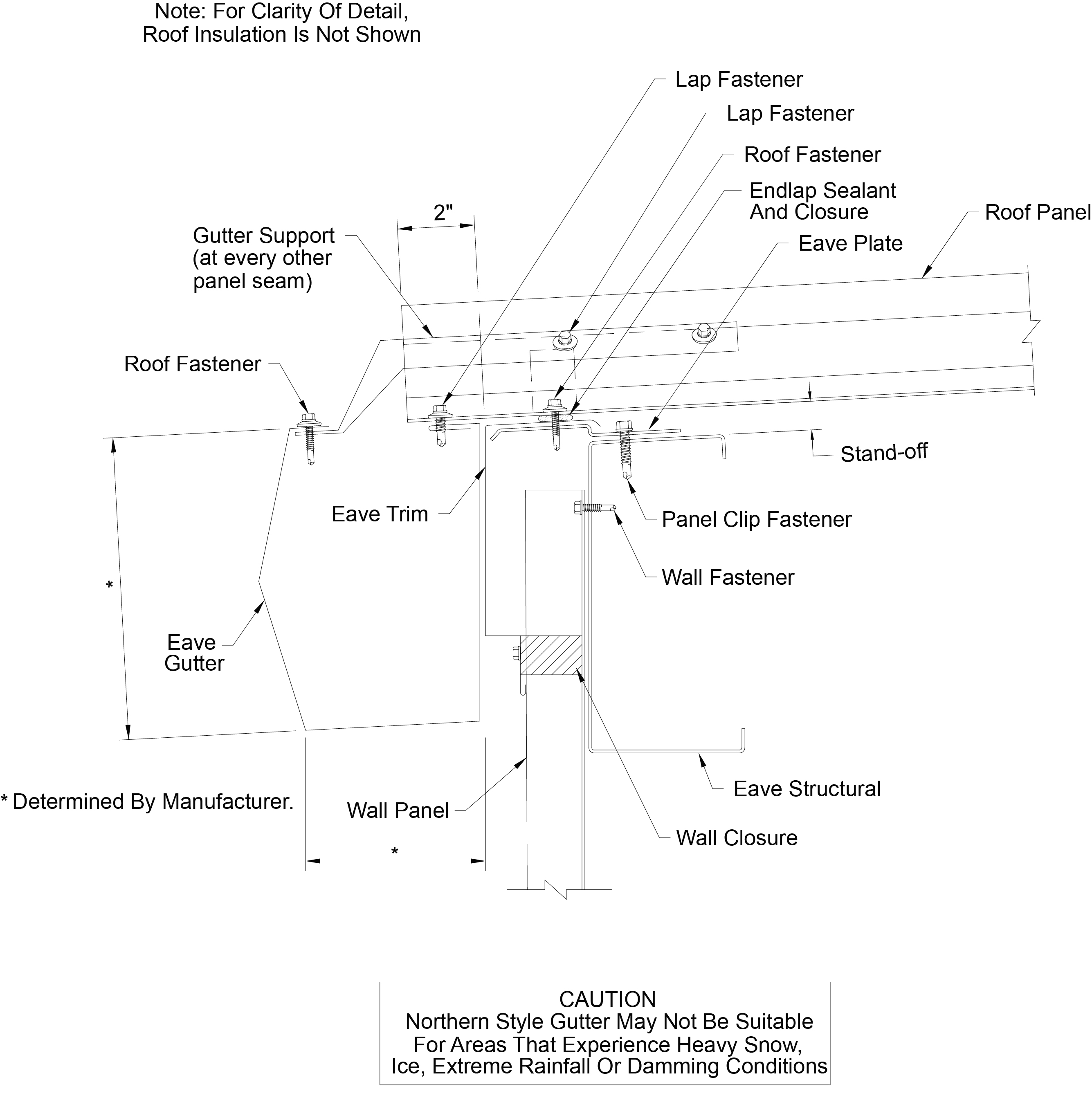

Northern Style Gutter |

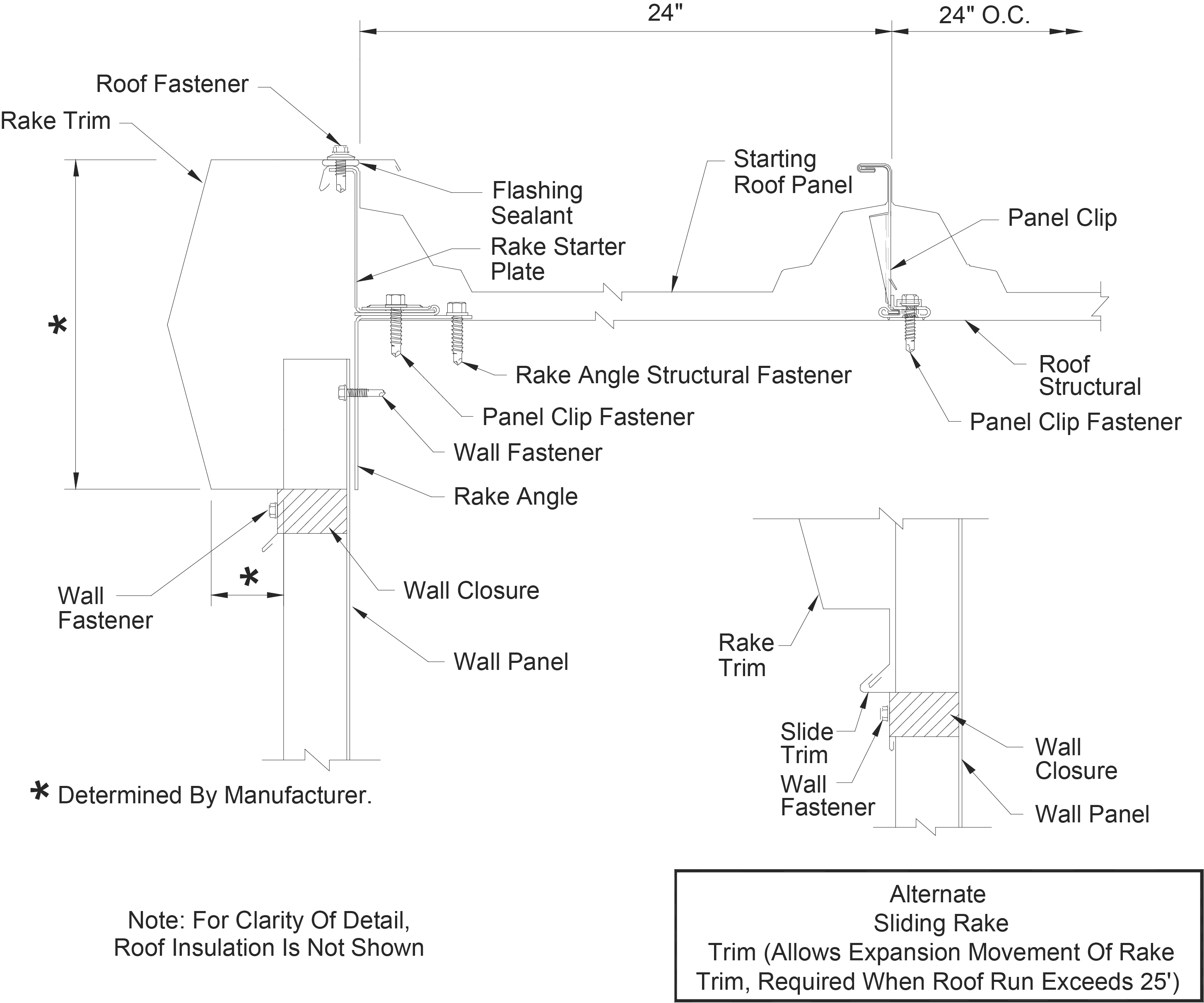

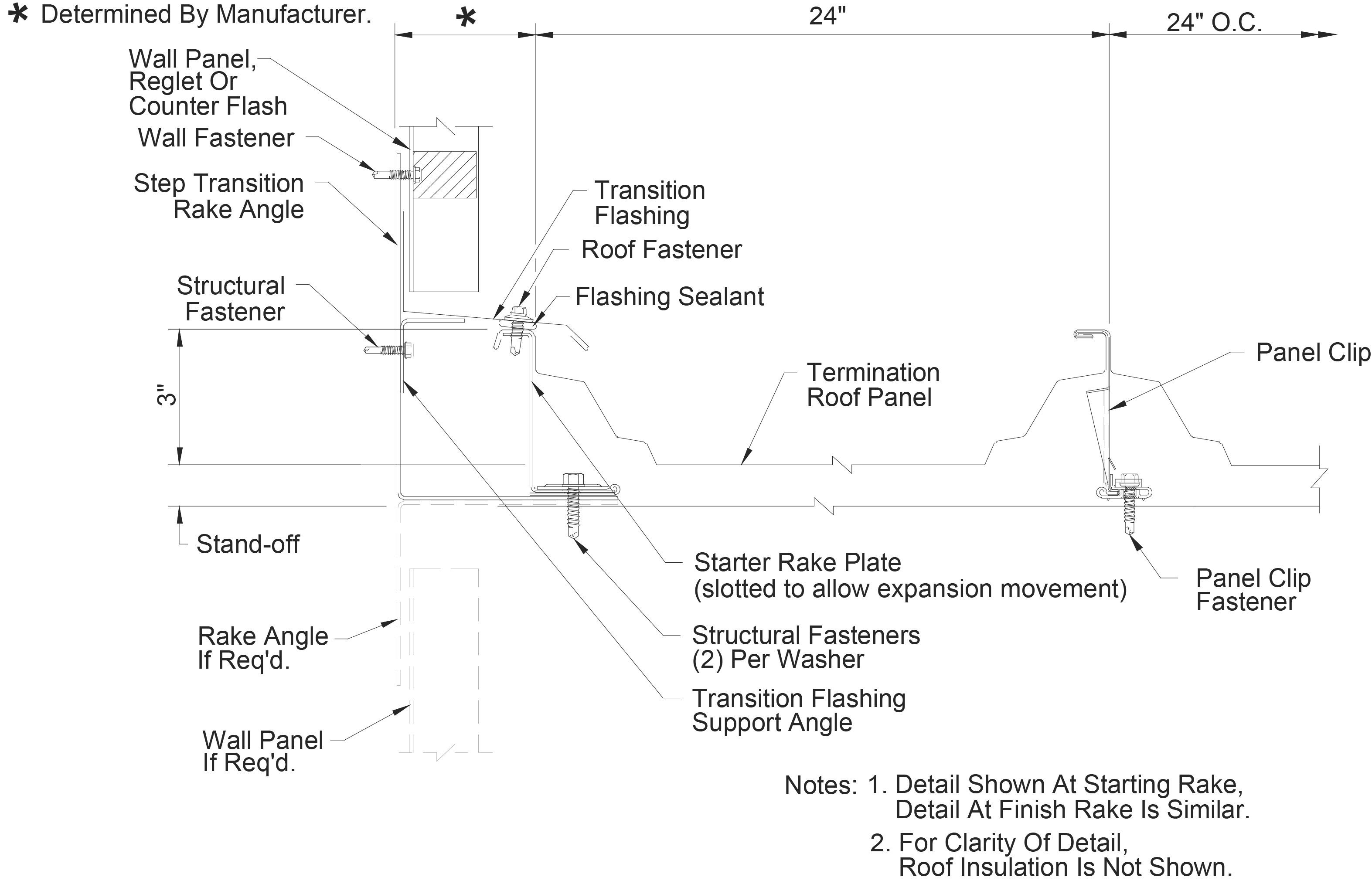

Starting Rake
Starting Rake
Click on image to enlarge
Rake Transition
Rake Transition
Click on image to enlarge

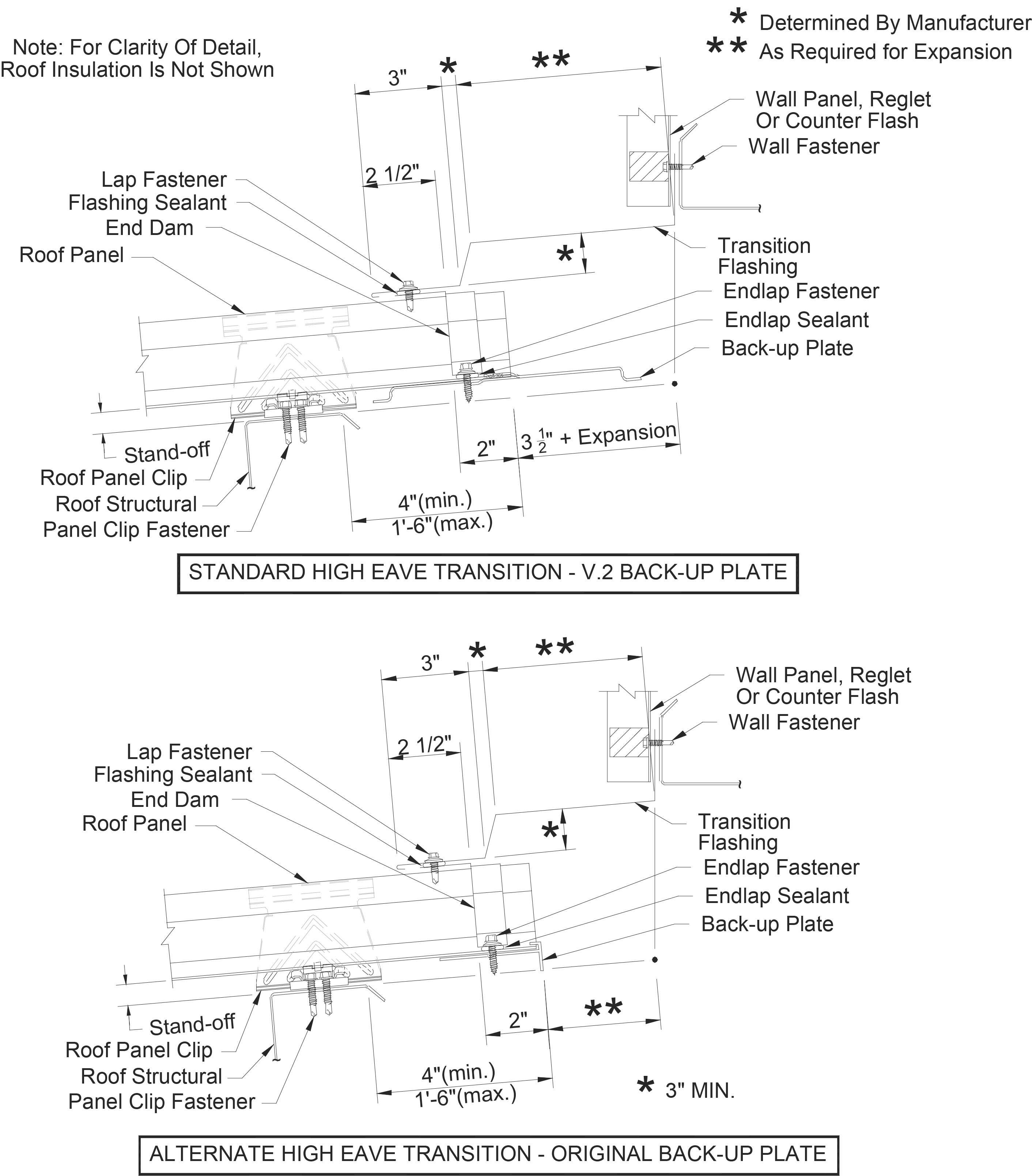

High Eave Transition
High Eave Transition
Click on image to enlarge

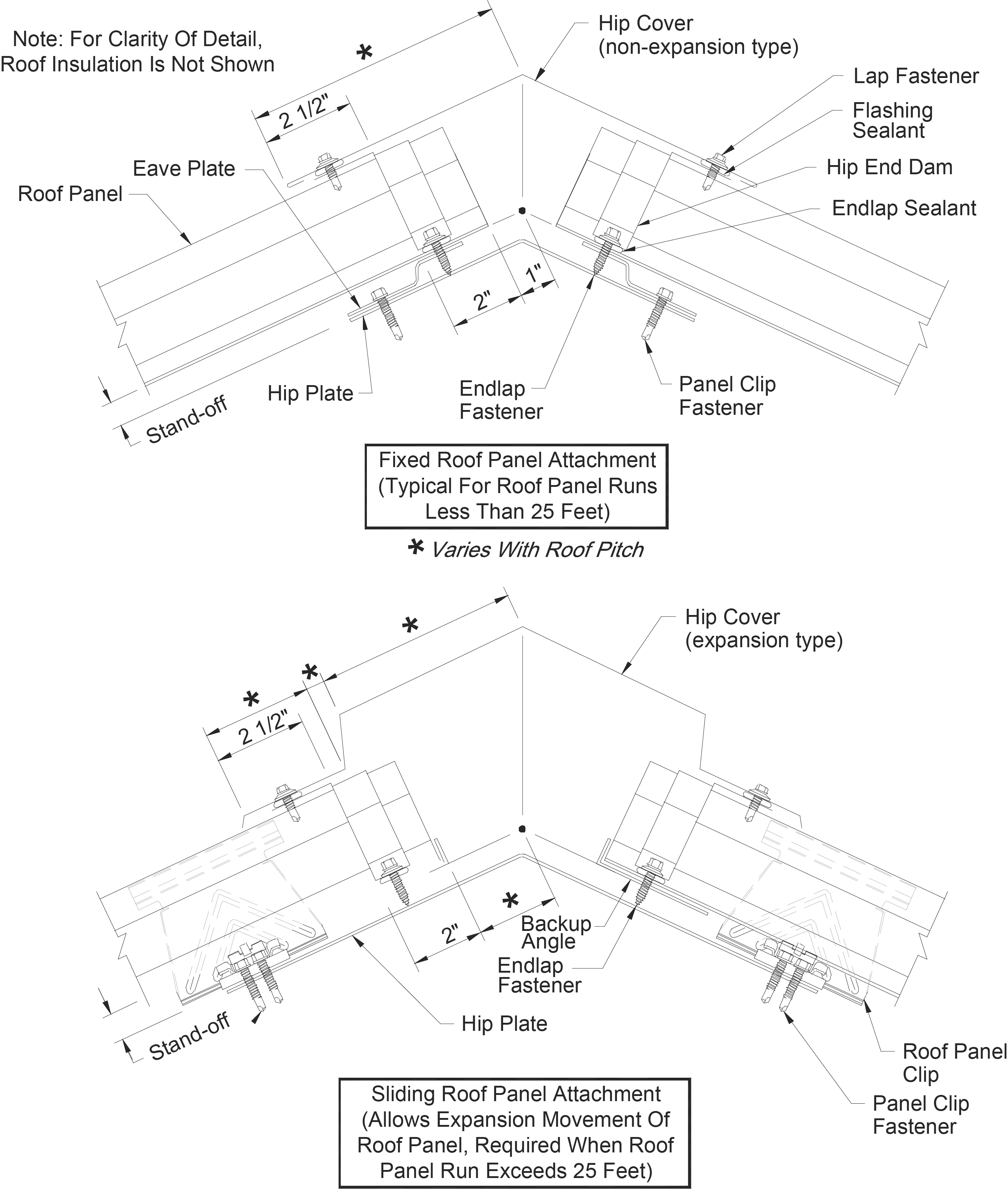

Hip or Valley
Hip or Valley
Click on image to enlarge
 |
 |

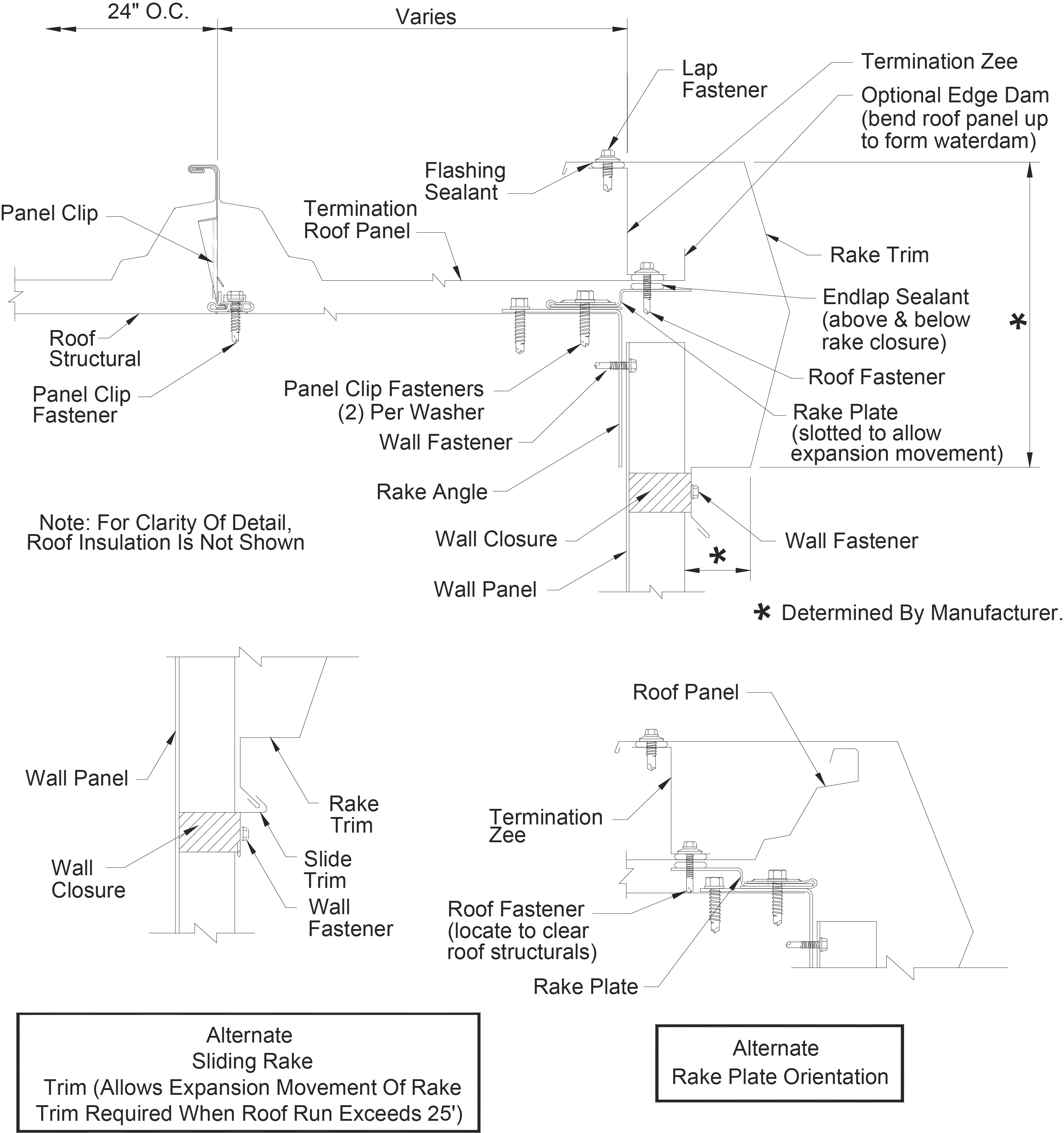

Finish Rake
Finish Rake
Click on images to enlarge
Alternate Rake Plate Orientation

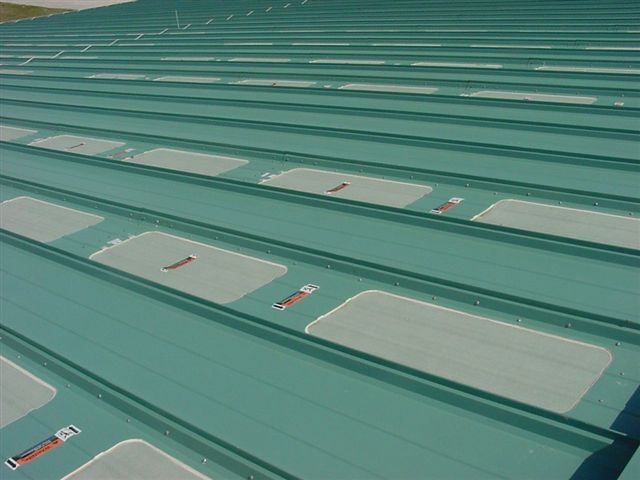

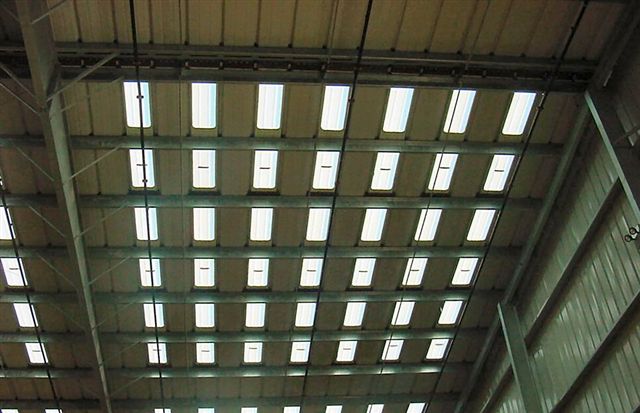

Skylight
Skylight
Click on image to enlarge

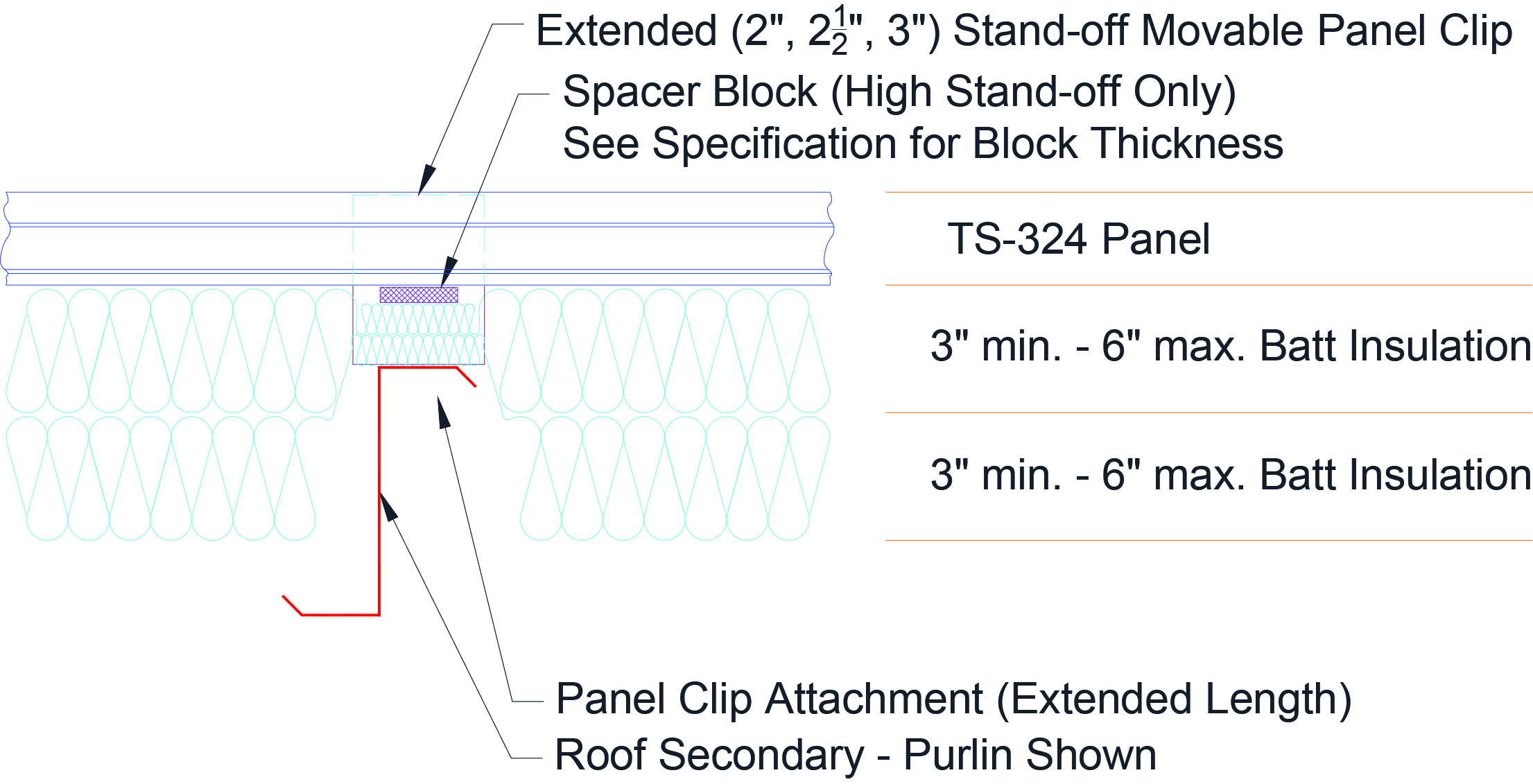

Energy Design Flexibility
Energy Design Flexibility
Click on image to enlarge
 |
 |
 |
 |
Skylight
Skylight
Architectural Details

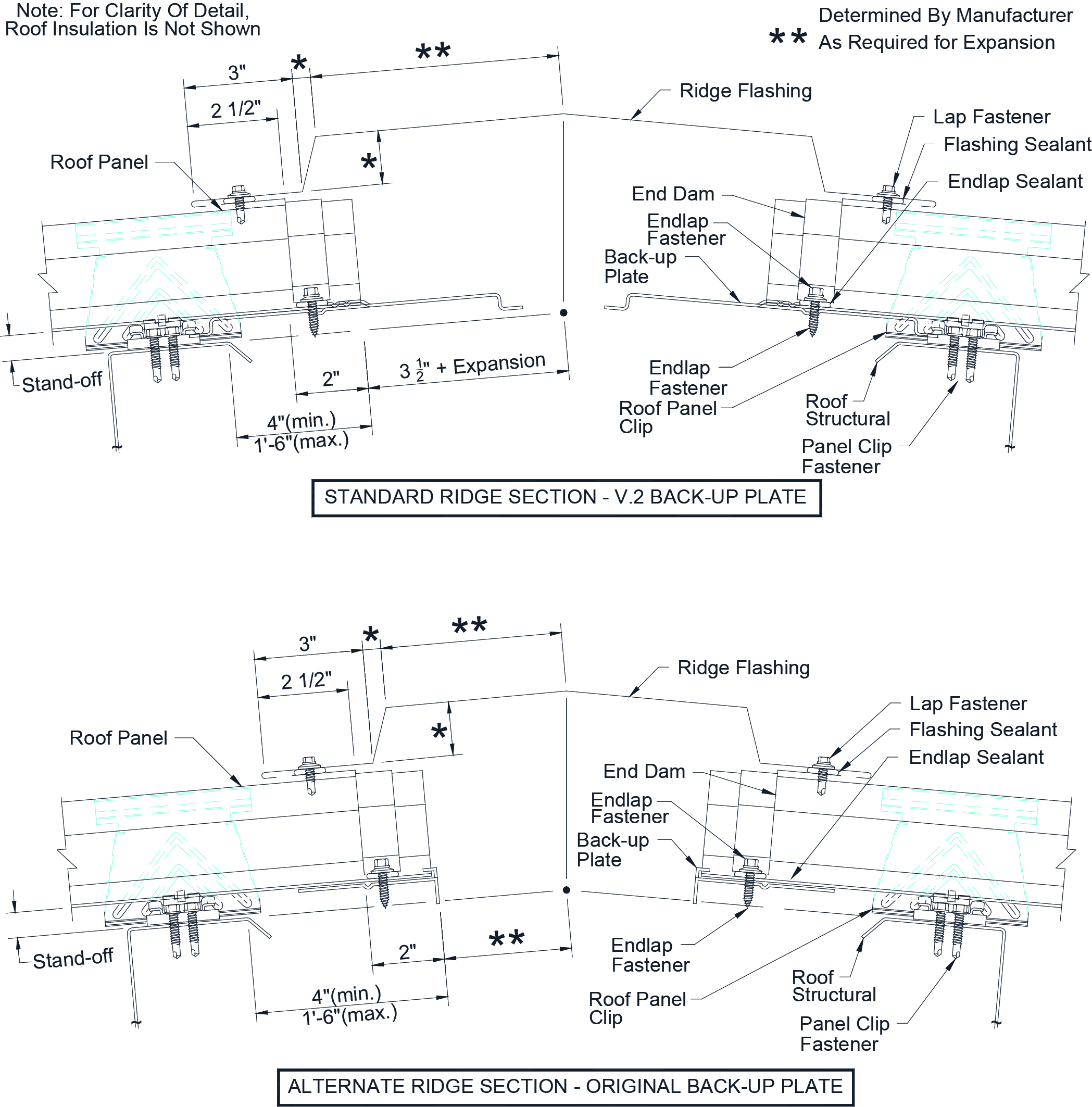

Ridge Detail
Panel Endlap
High Eave Detail

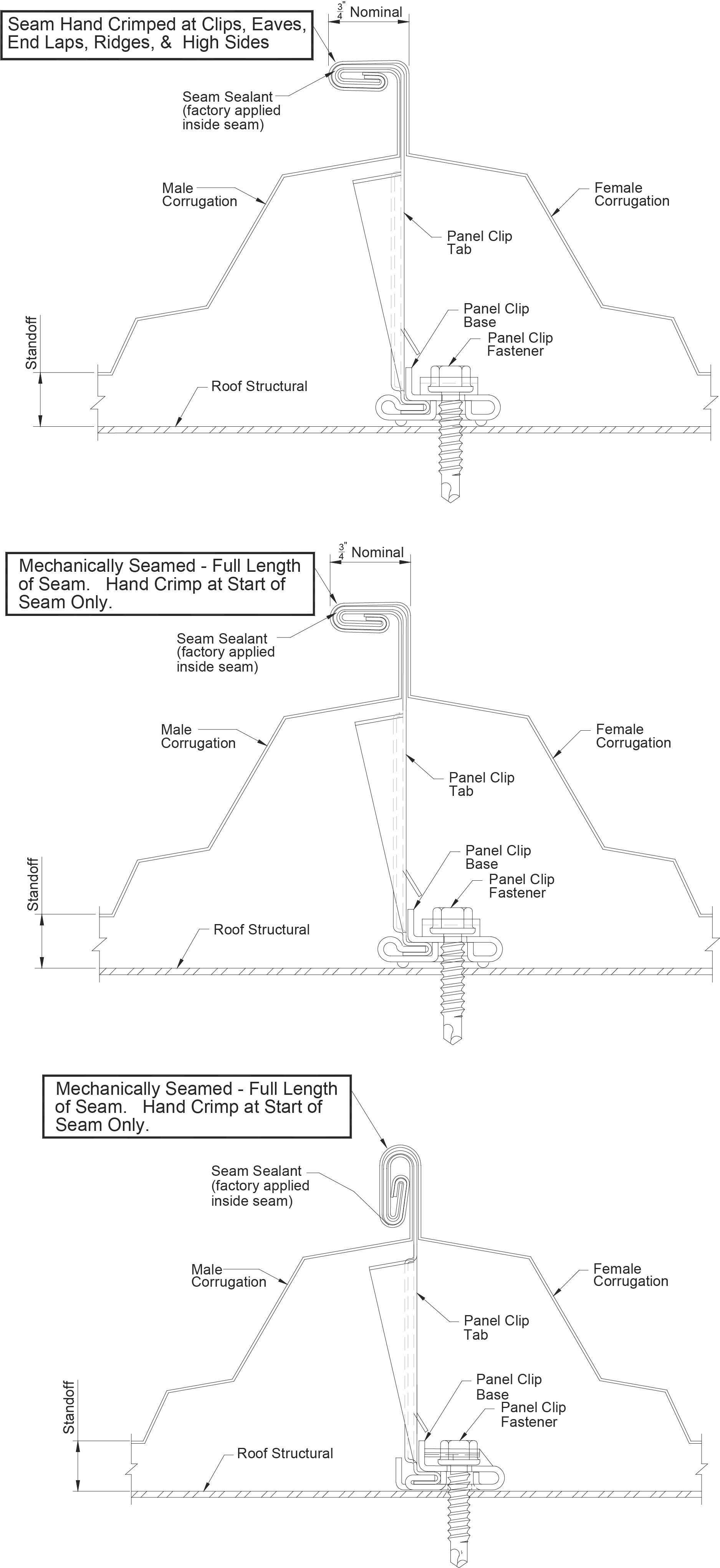

Panel Seam Technology
Eave Trim Only | Gutter - Southern Style | Gutter - Northern Style

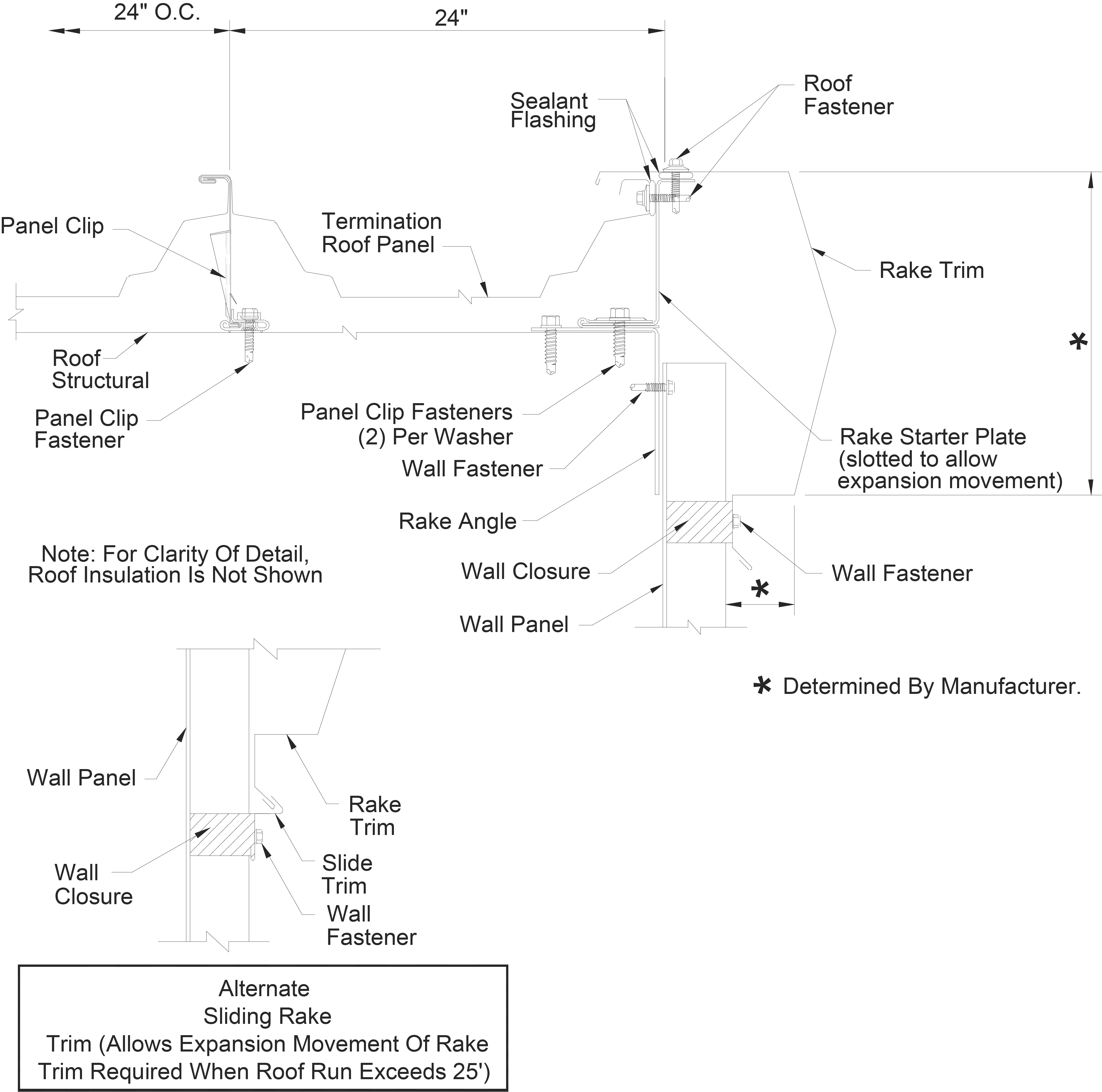

Gable - Starting Rake
Rake Transition
High Eave Transition

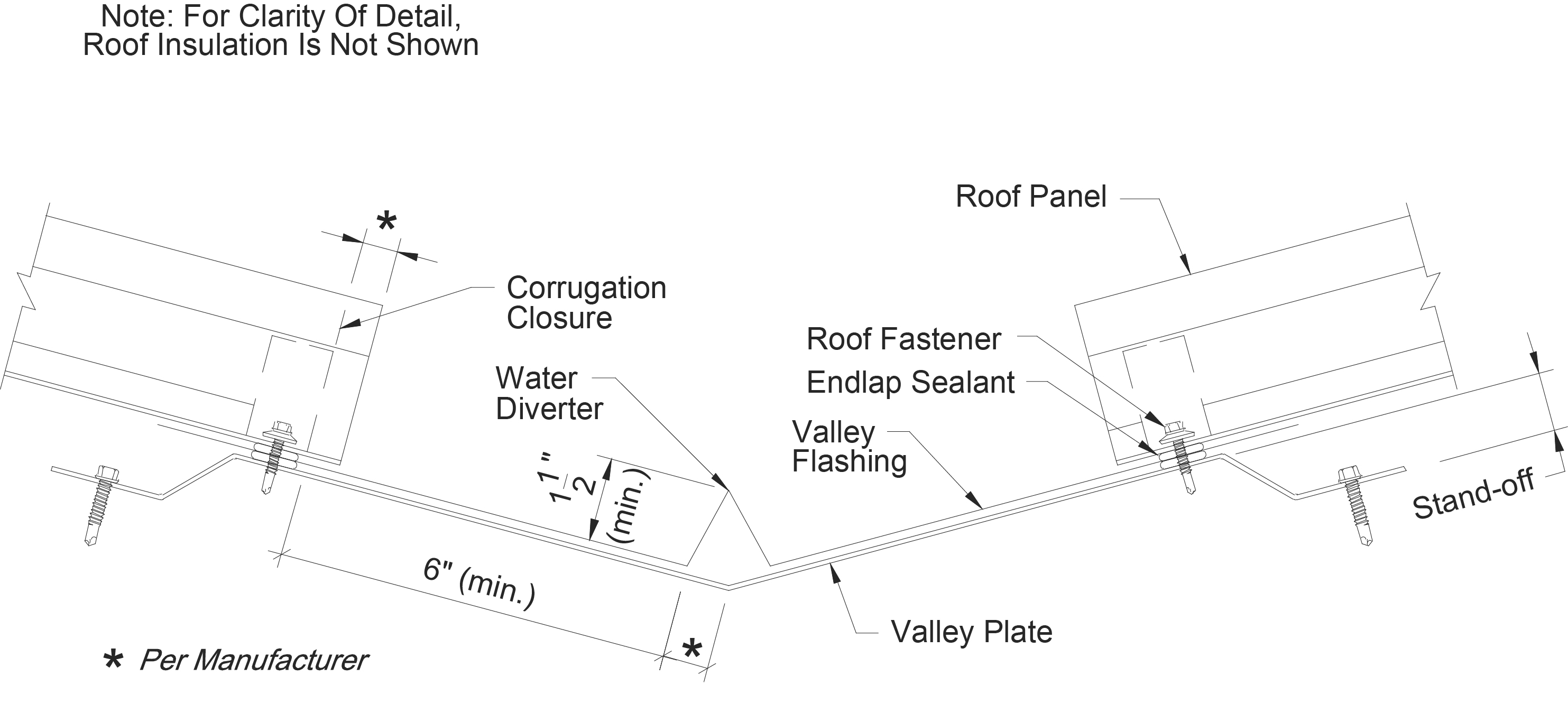

Hip Detail | Valley Detail
Gable - Finish Rake - Off Module | Gable - Finish Rake - On Module

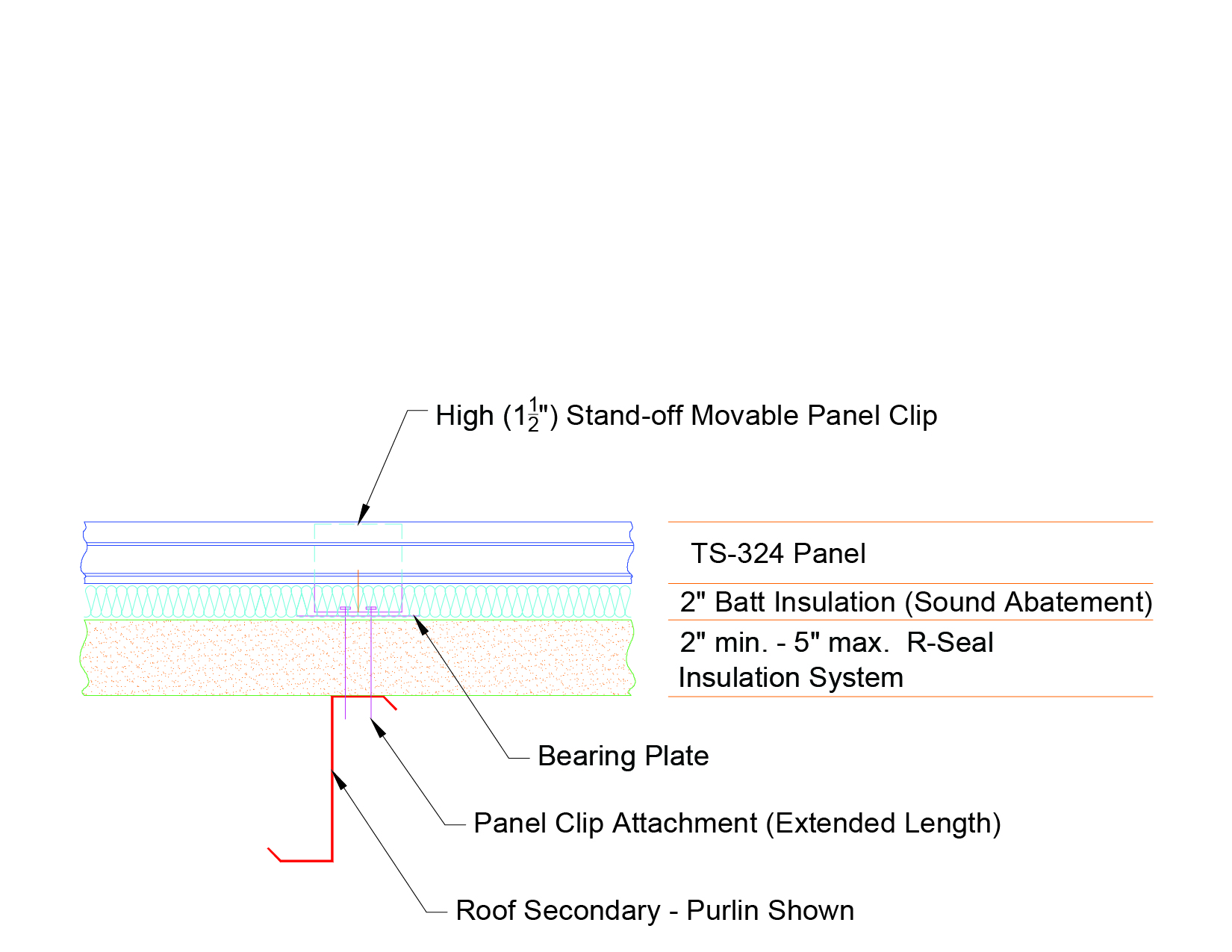

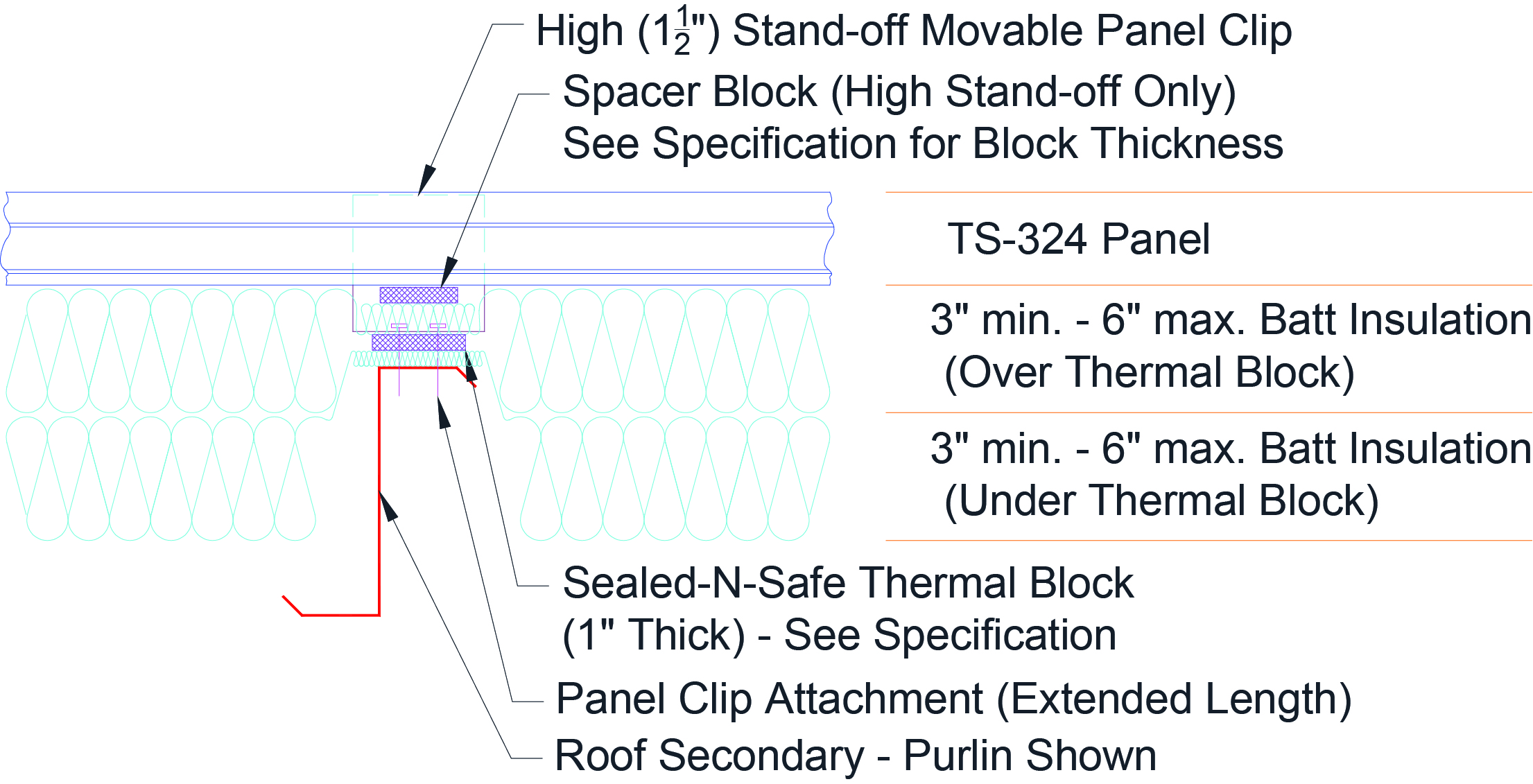

Energy Design Flexibility
Insulation Solution 1 | Insulation Solution 2
Insulation Solution 3 | Insulation Solution 4
Technical Data
Product Info
TS Windclips
TS Extended Standoff Clips
Retrofit Guide
HC Rake, Starter & Eave Plates
Next Generation Back-up Plate
Designing Metal Roofs for Thermal Movement
Data Sheets
TS FC60X Series Standard Fixed Clips
TS FC60X Series Extended Standoff Fixed Clips
TS BA 60X Series Movable High Capacity Clips
TS MPS 60X Series Moveable Purlin Stabalizing Clips
TS MPS 60X Series Extended Standoff Clips
TS MPS 60X-3 Series Standard Movable Clips
Perimeter Plate Data Sheet
Ancillary Products
Guide Specs
