PanelCraft Roofing Specifications and CAD Details
Explore PanelCraft 216/218® standing seam roofing resources for architects and specifiers. Use the tabs below to review architectural details, technical data and product information. The Guide Specs tab provides roofing specifications and CAD drawings to support your project documentation.
SST guide specifications on ARCAT | SST CAD drawings on ARCAT | PanelCraft standing seam roofing overview
Roof Panel with Beaded Pan and Roof Panel with Striation/Bead Combo Pan also Available
Roof Panel with Beaded Pan and Roof Panel with Striation/Bead Combo Pan also Available
Highest Performing Clips
Thermal Expansion Up to 7 Inches of Travel
Highest Standoff Clips Enable Increased Insulation and Retrofit Opportunities.
Industry Leading Envelope Performance
- ASTM 1680-16 (2022) Air Infiltration tested @ 40psf (compared to standard 6.25psf) = Superior performance @ 6X the pressure
- ASTM E 1646-95 (2018) Water Infiltration tested @ 50psf (compared to standard 12psf) =ZERO Leaks @ 4X the pressure
- ASTM E 2140-01 (2017) 6-inch Static Water Head test= ZERO Leak with Laps
Energy/Green Design Flexibility
- Extended Standoff Clips Provides Higher R and Lower U Values
- R-Seal: Provides R and U values comparable to IMP With Reduced Cost & Installation time
Pipe Penetration
Pipe Penetration
To flash roof penetrations, the most common material for a pipe boot is ethylene propylene diene monomer (EPDM) rubber.
Ridge
Ridge
Click on image to enlarge
Panel Endlap
Panel Endlap
Click on image to enlarge

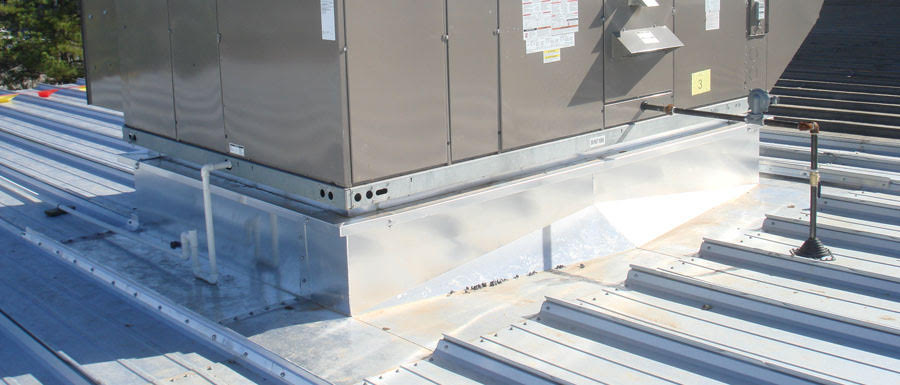

Roof Penetration with Curb
Roof Penetration with Curb
High Eave
High Eave
Click on image to enlarge
Panel Seam Technology
Panel Seam Technology
Click on image to enlarge

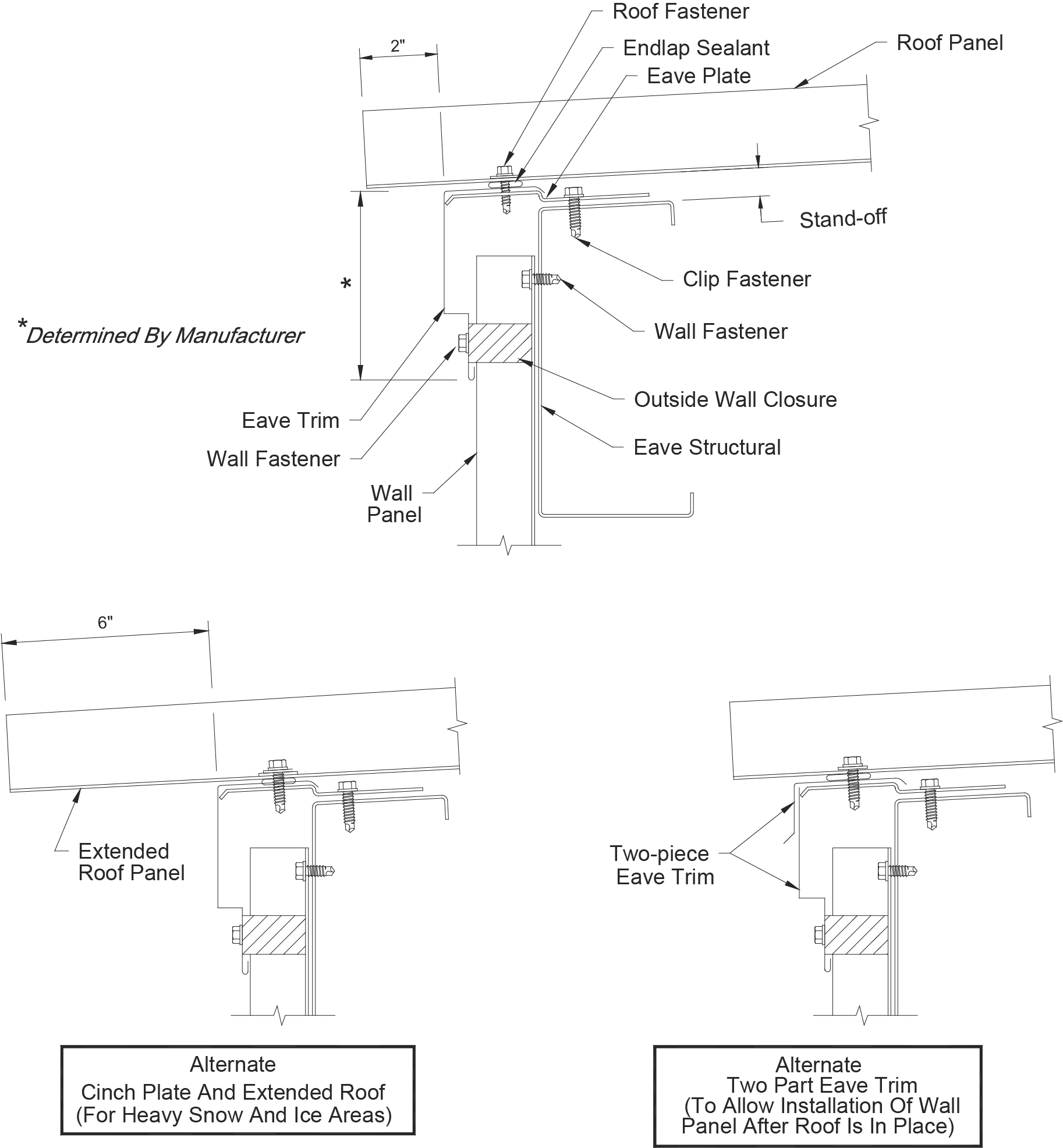

Low Eave
Low Eave
Click on images to enlarge
Eave Trim Only |
Eave Box Trim |
Southern Style Gutter |
Northern Style Gutter
|

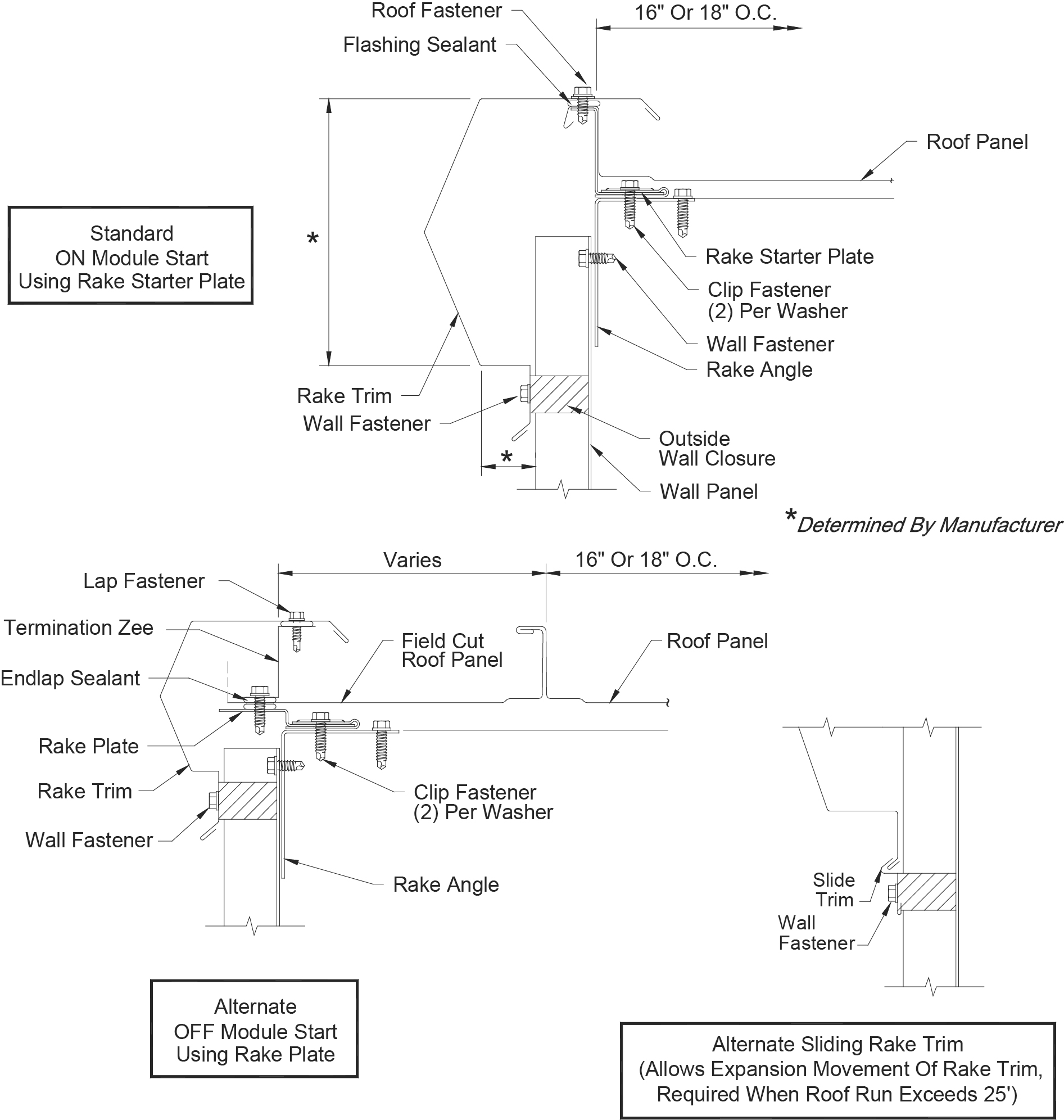

Starting Rake
Starting Rake
Click on image to enlarge

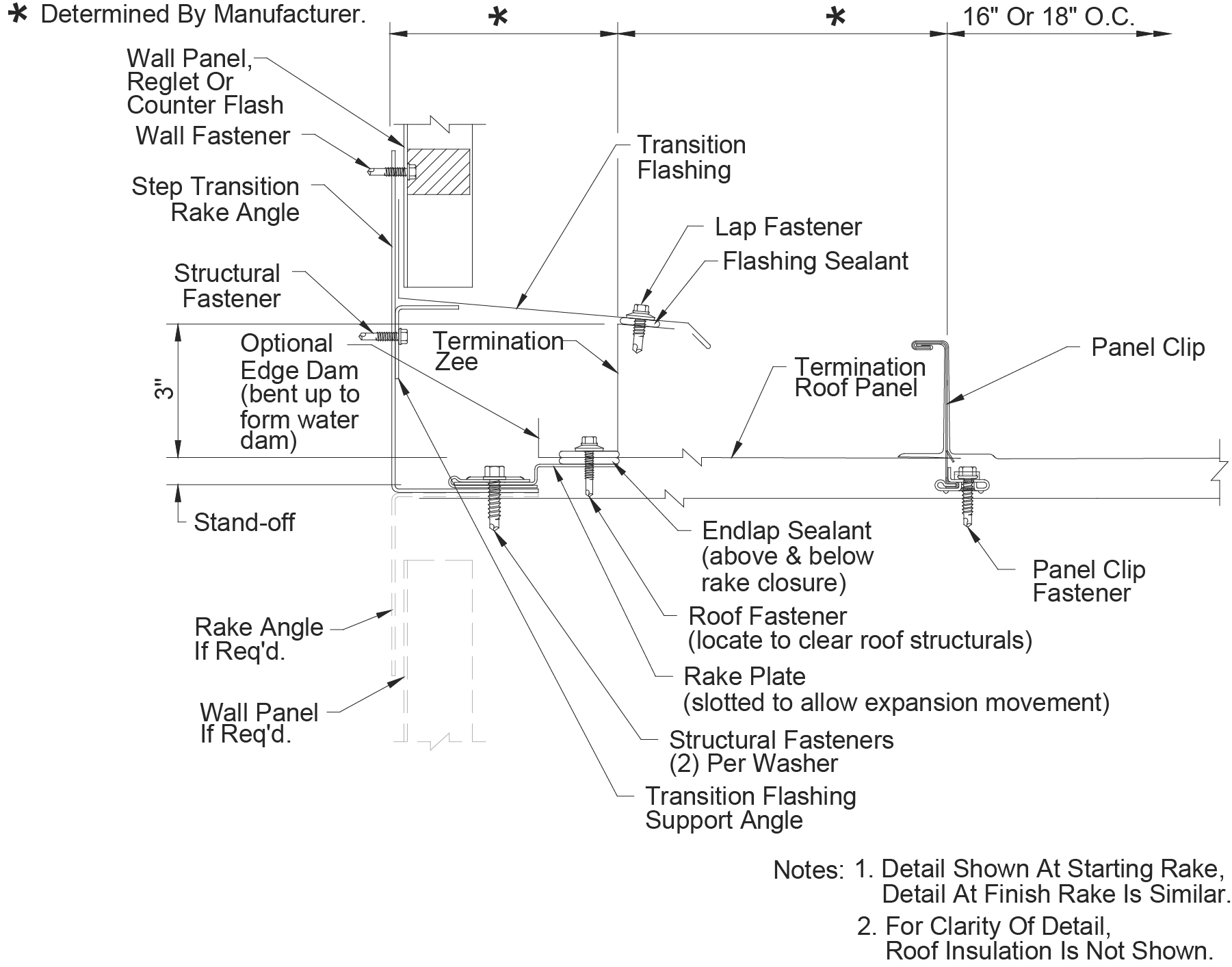

Rake Transition
Rake Transition
Click on image to enlarge

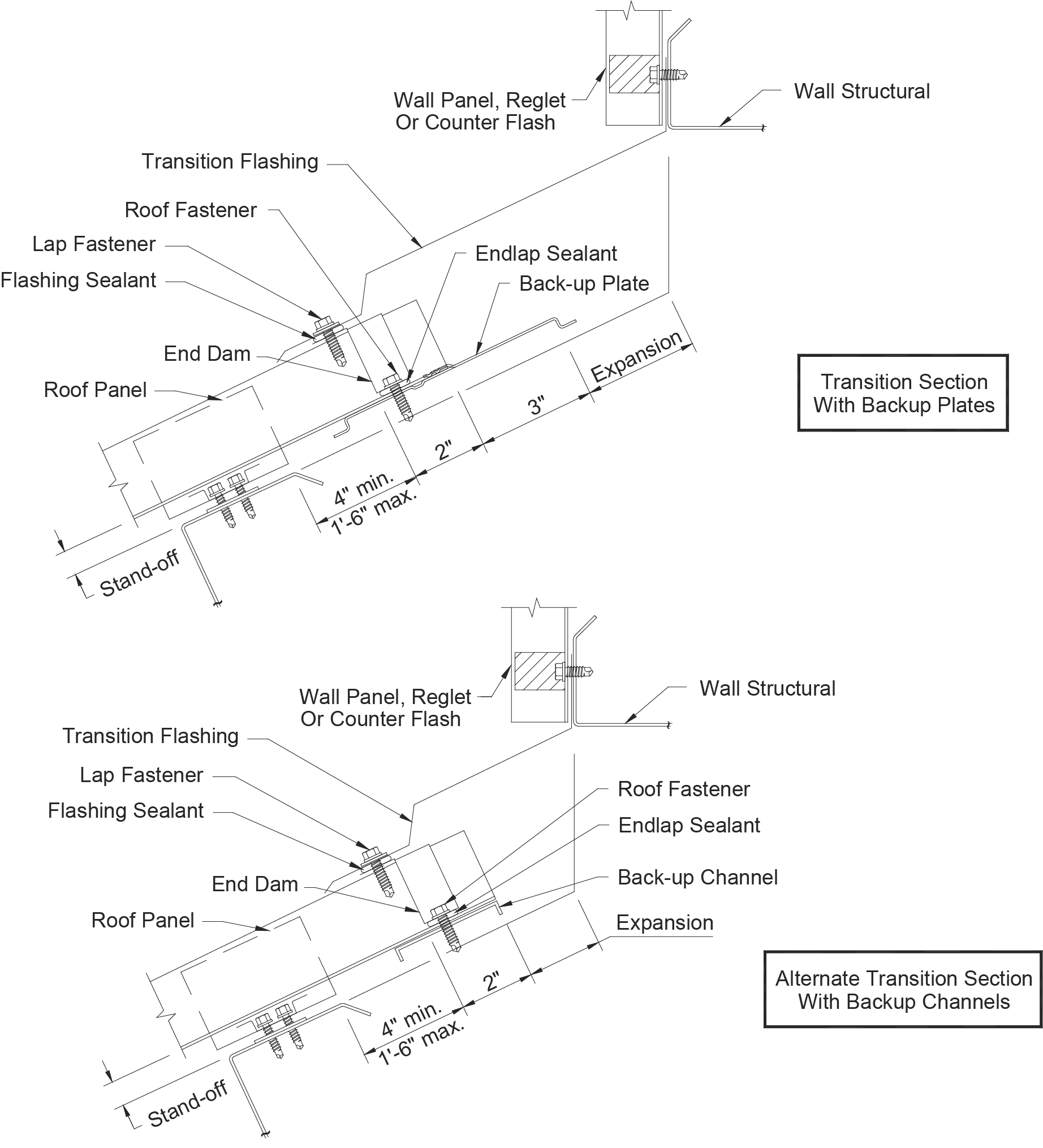

High Eave Transition
High Eave Transition
Click on image to enlarge

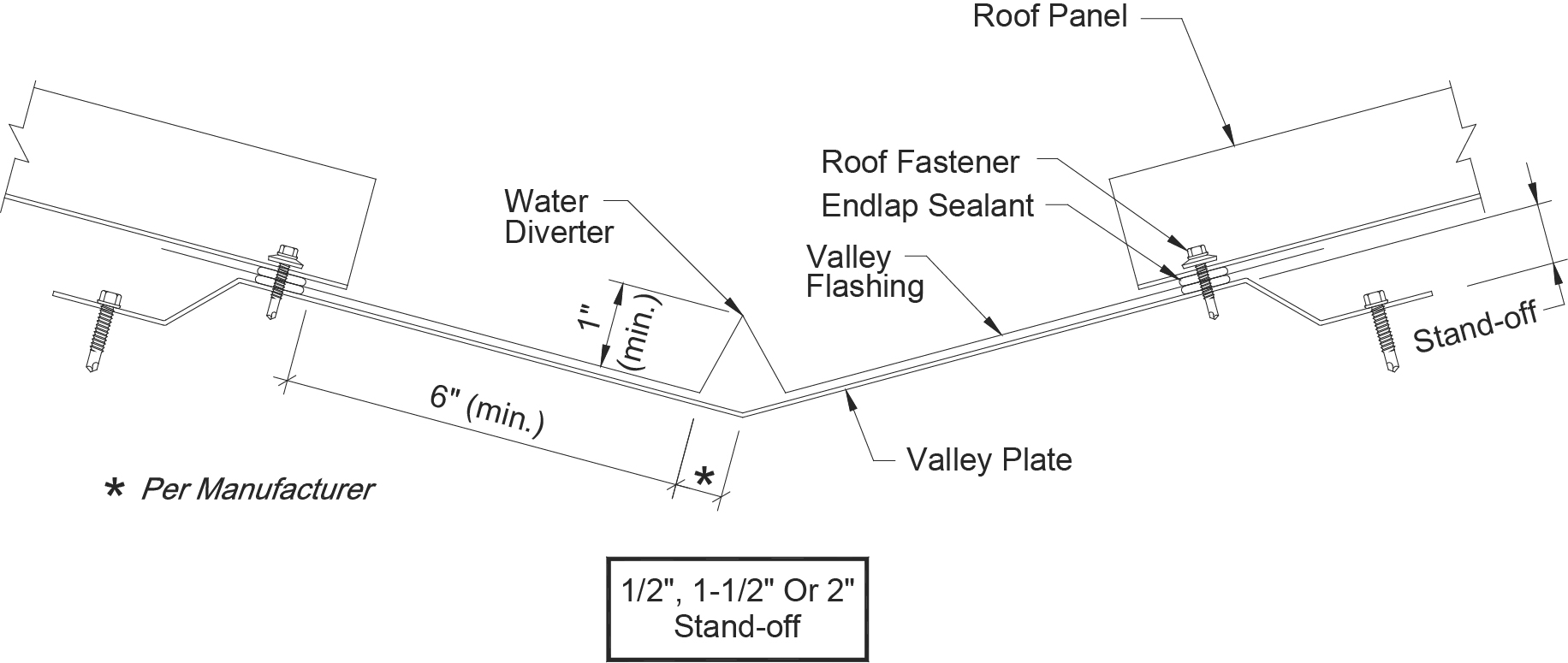

Hip or Valley
Hip or Valley
Click on image to enlarge
 |
 |
Finish Rake
Finish Rake
Click on image to enlarge

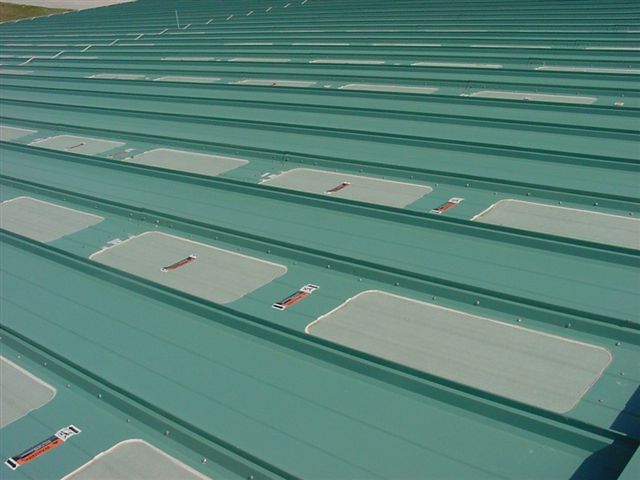

Skylight
Skylight
Click on image to enlarge
Energy Design Flexibility
Energy Design Flexibility
Click on image to enlarge
 |
 |
 |
 |

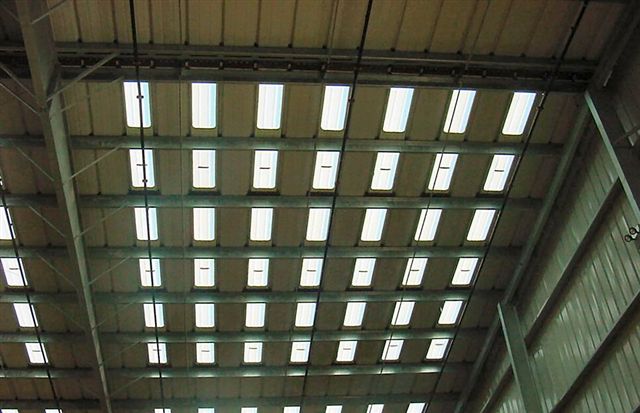

Skylight
Skylight
Architectural Details
Ridge Detail

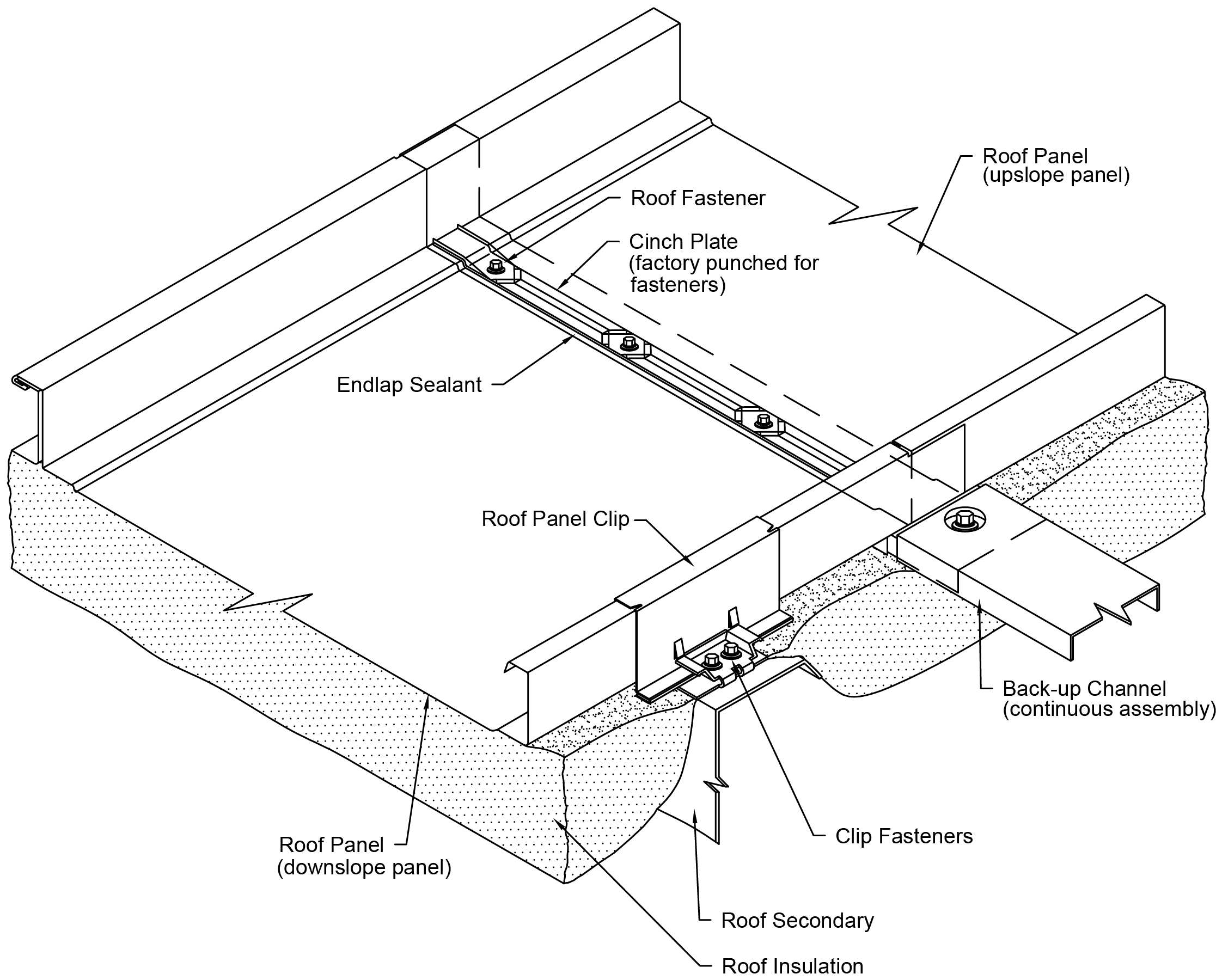

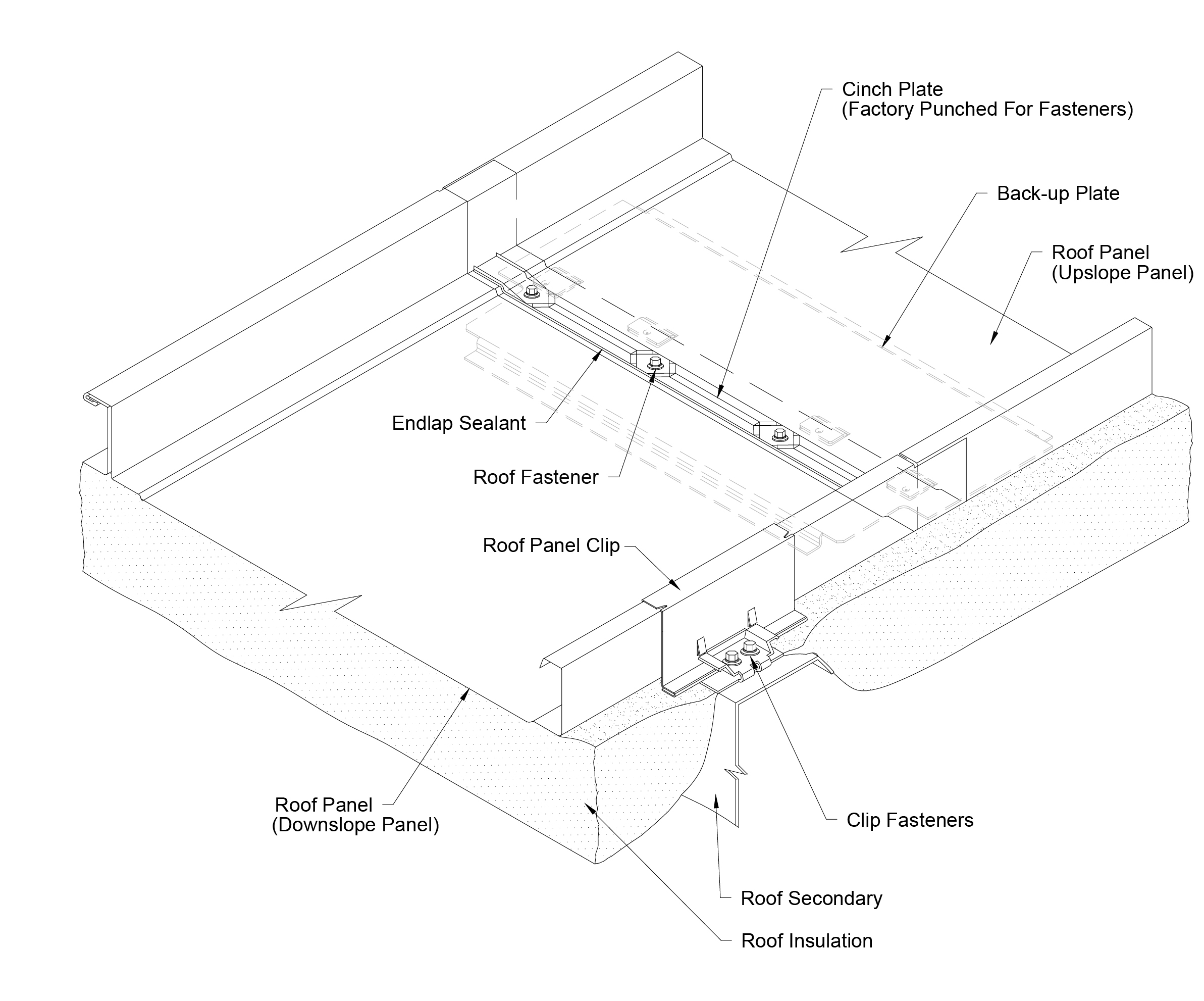

Panel Endlap - Backup Plate | Panel Endlap - Backup Channel

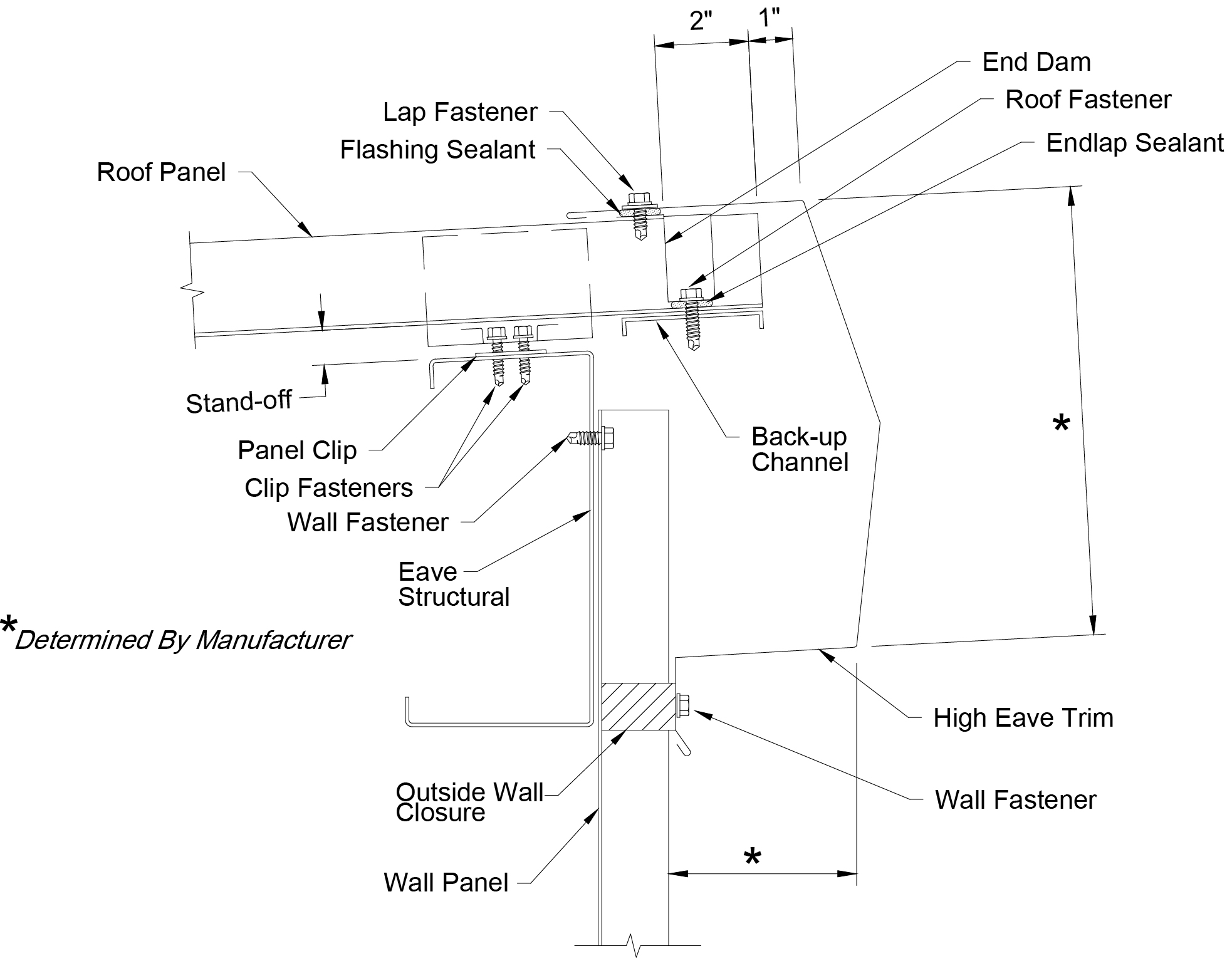

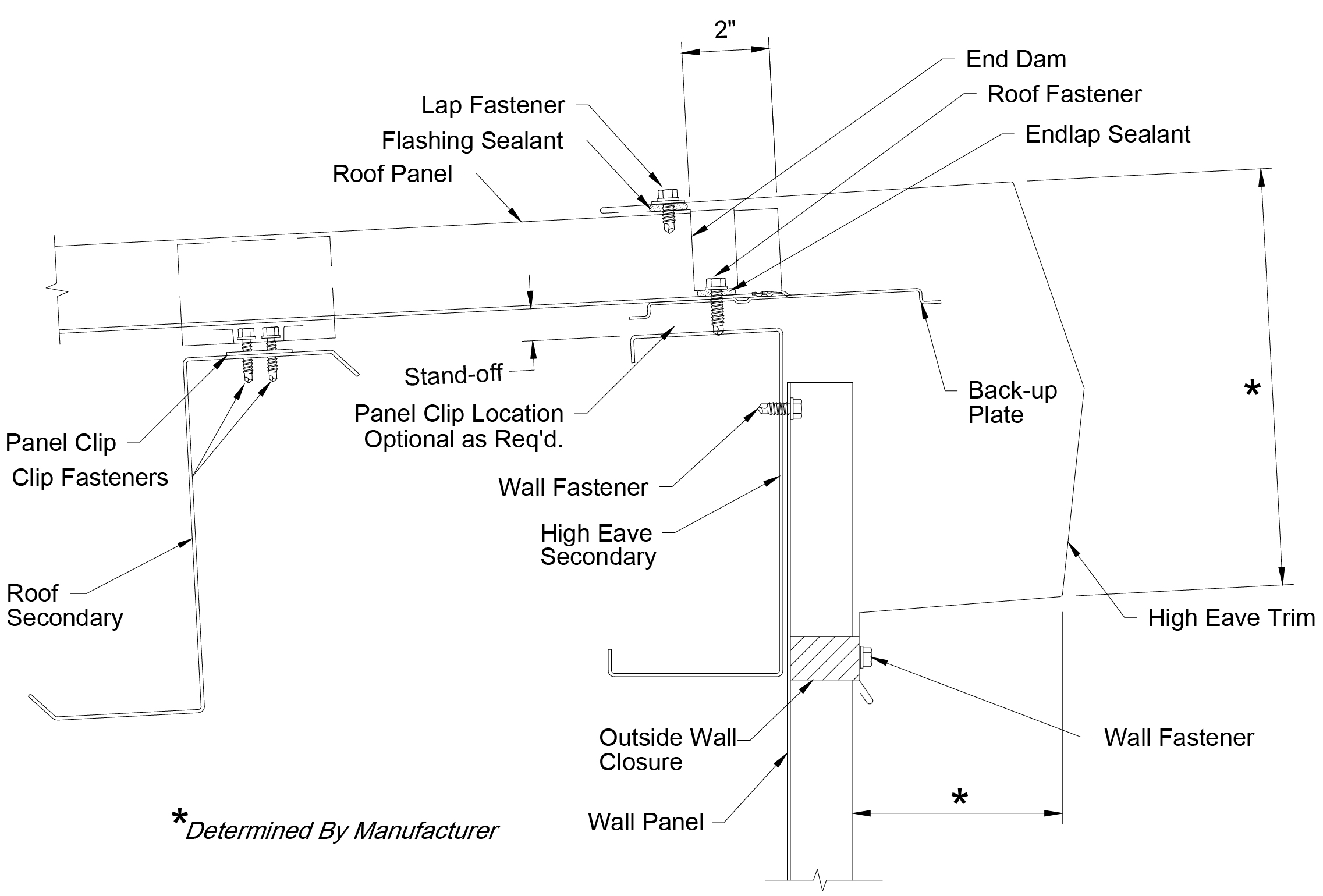

High Eave - Backup Plate | High Eave - Backup Channel

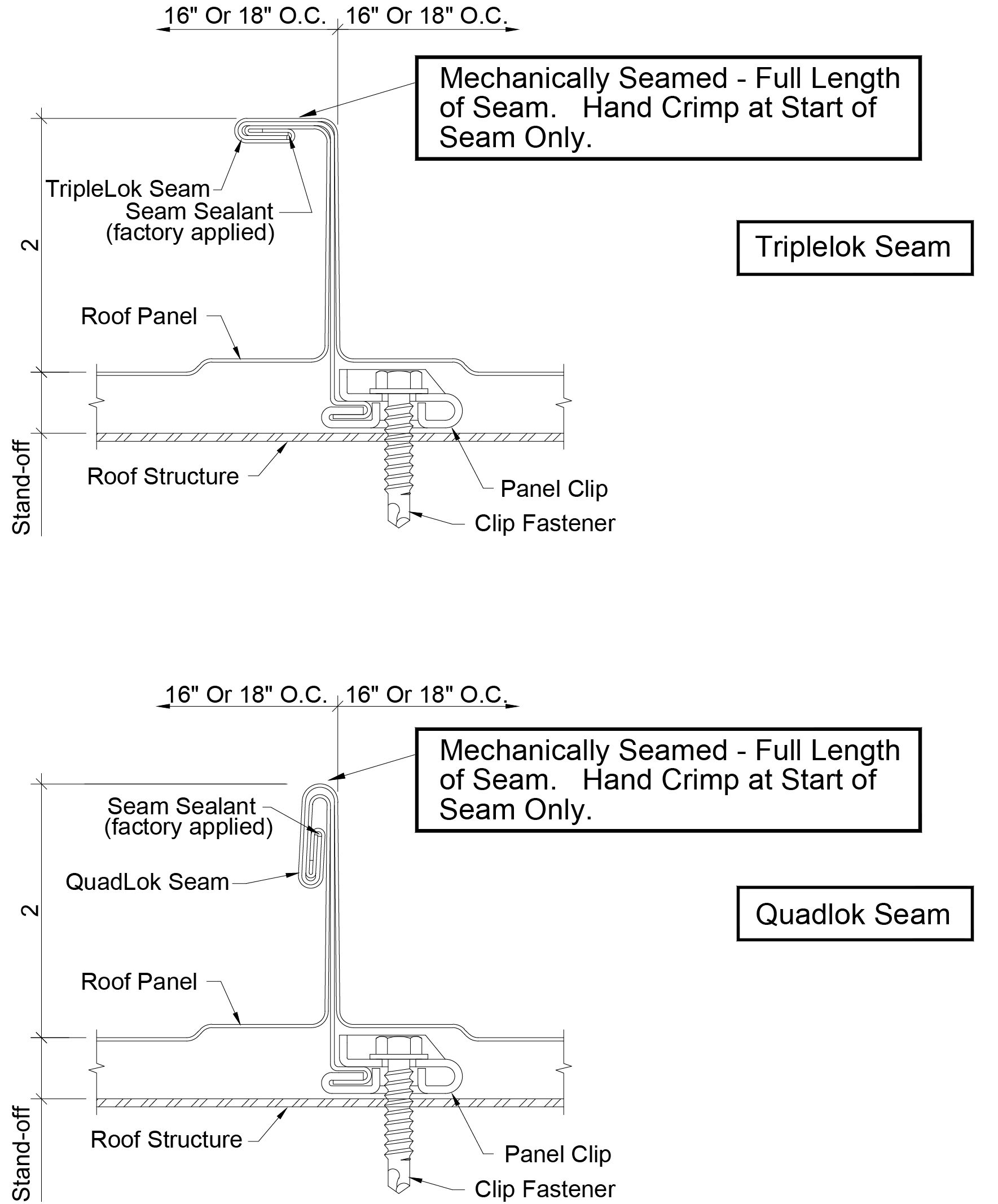

Panel Seam Technology
Eave Trim Only | Eave Box Trim Only
Gutter - Southern Style | Gutter - Northern Style

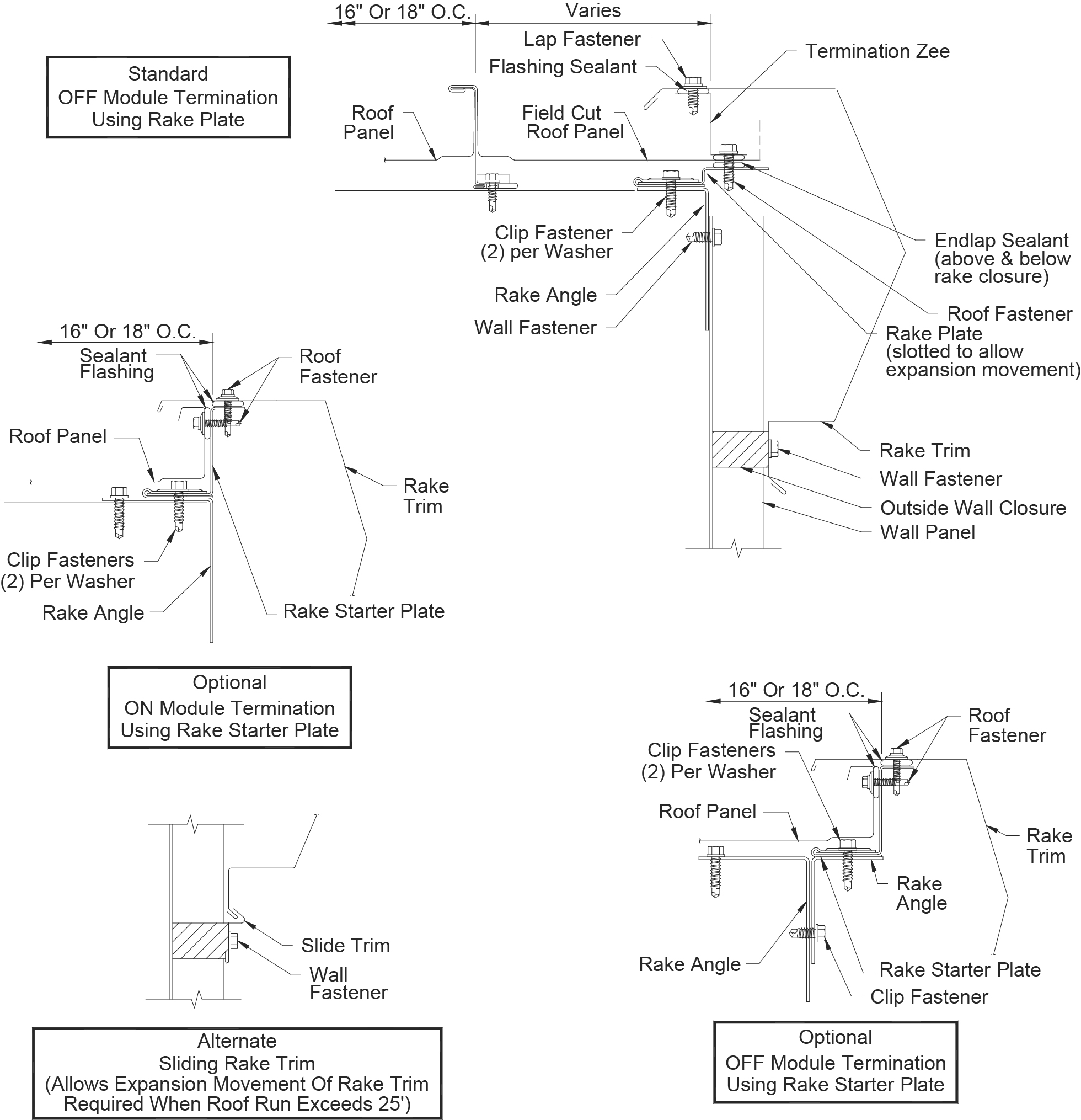

Gable - Starting Rake
Rake Transition
High Eave Transition
Hip Detail | Valley Detail
Gable - Finish Rake
Energy Design Flexibility

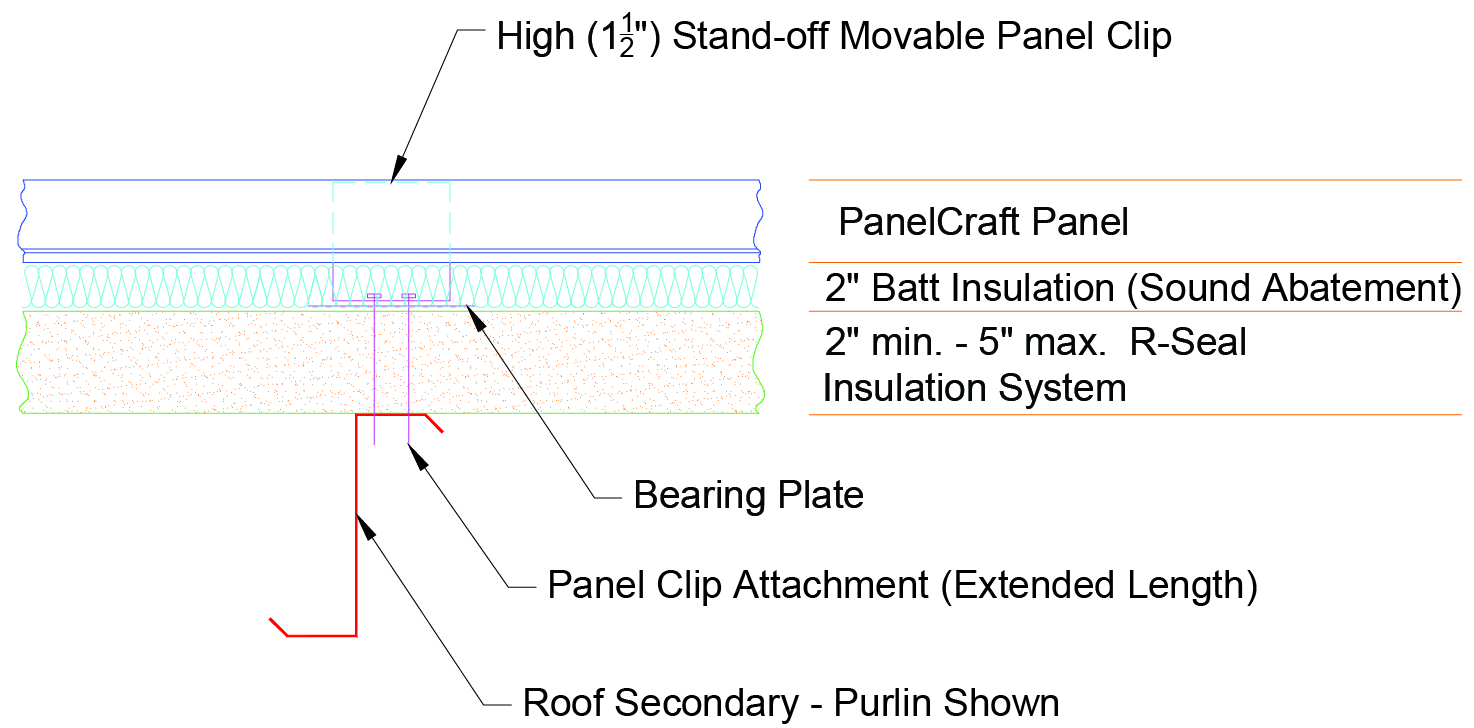

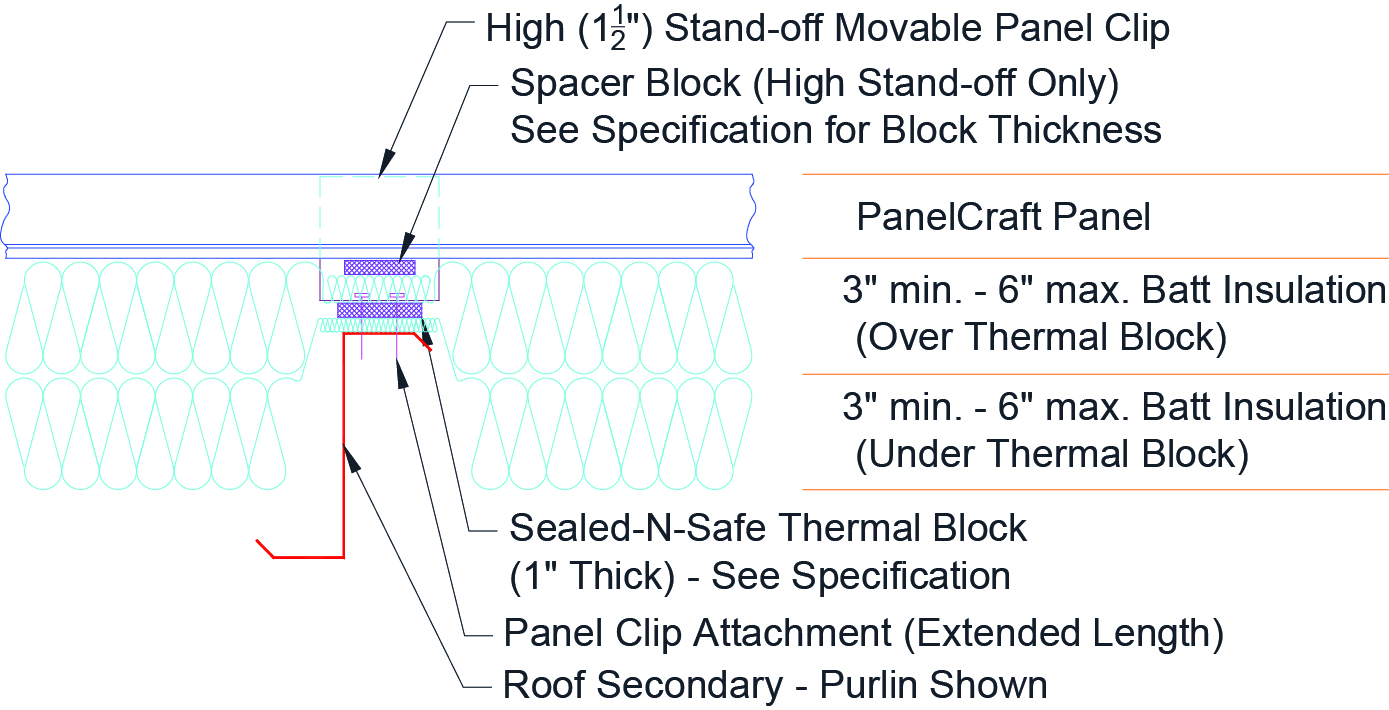

Insulation Solution 1 | Insulation Solution 2
Insulation Solution 3 | Insulation Solution 4
