Building Research Systems, Inc (BRS) utilizing proprietary Superior Seam Technology® (SST) solidifies Panel Craft 216/218 as the UNDISPUTED leader for Architectural 2” pan panel roof systems. Latest testing per BRS license holders’ feedback for 6” static waterhead flooded panel test.

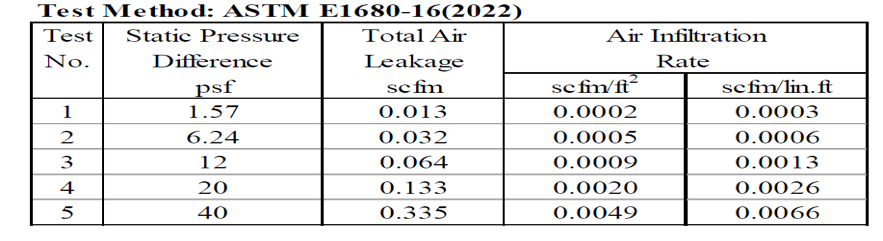

1. Improves Air Infiltration testing value numbers for the Panel Craft 216/218 vertical 2” rib pan panel roofing system featuring a TripleLok® seam while increasing the air pressure to 40 psf in lieu of accepted 12 psf differential.

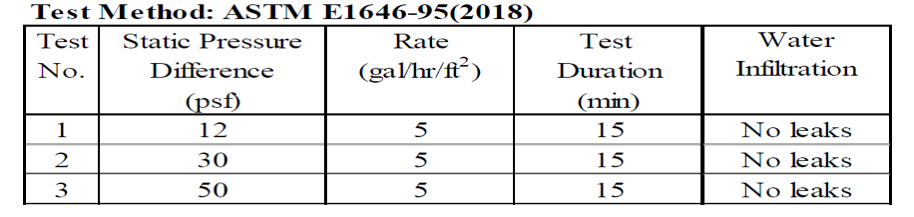

2. Dominates in the industry with the latest water infiltration tests results featuring the static pressure differences of 40 psf and 50 psf (up to 4X) industry test requirement with NO LEAKS!

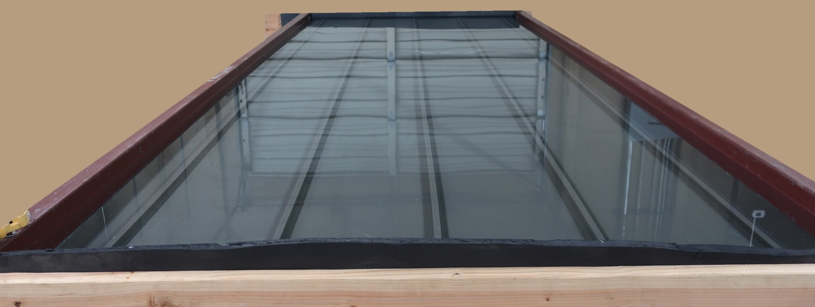

3. Passage of the “standing 6” static waterhead flooded panel test”. The TripleLok® seamed rib joinery panel test assembly included two (2) different style panel laps which passed after being subjected to the required 24-hour full assembly submersion test period. ASTM E2140-01(2017) “Standard Test Method for Water Penetration of Metal Roof Panels Systems by Static Water Pressure Head” pass/fail test. NO LEAKAGE!
| Additional information available on BRS tech bulletin # PCTB18r0 |
